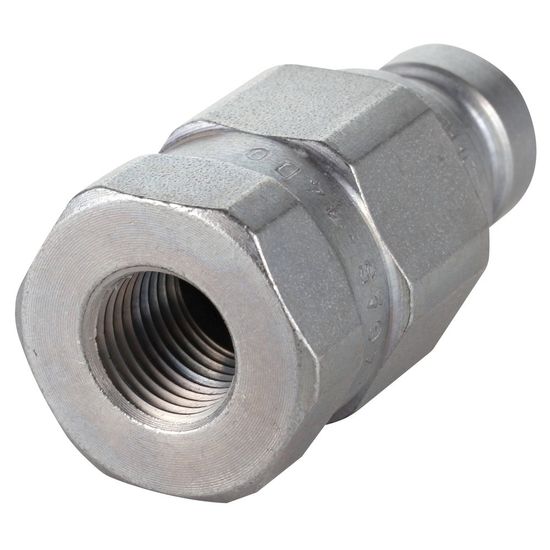

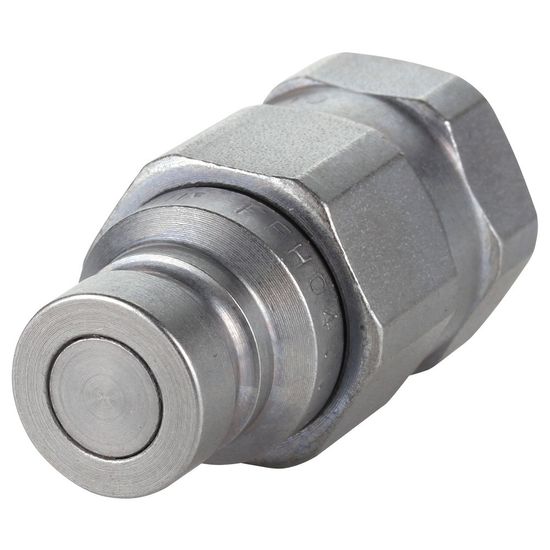

Flat-Face Quick Coupling Male 1/2" Bsp Faster

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFFH0812GASM

  ManufacturerFASTER

  Characteristics

  - flat-face quick coupling
  - interchangeable according to standard ISO 16028
  - cannot be connected/disconnected under pressure
  - working pressure 35 MPa
  - flow rate 110 l/min
  - burst pressure 140 MPa
  - coupling force required: about 210 N

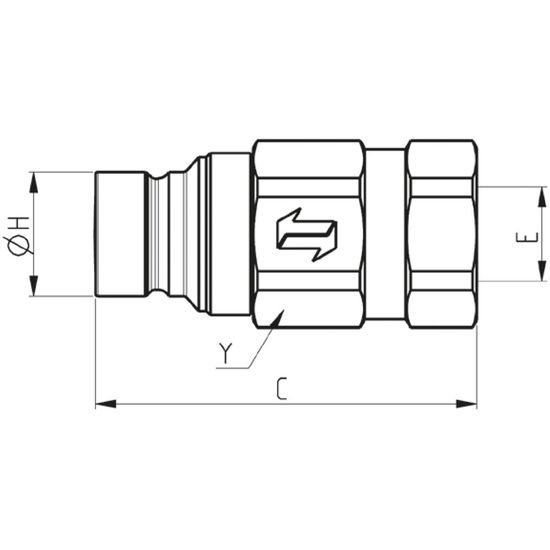

  - E thread 1/2" BSP female
  - C 75 mm
  - H 24.5 mm

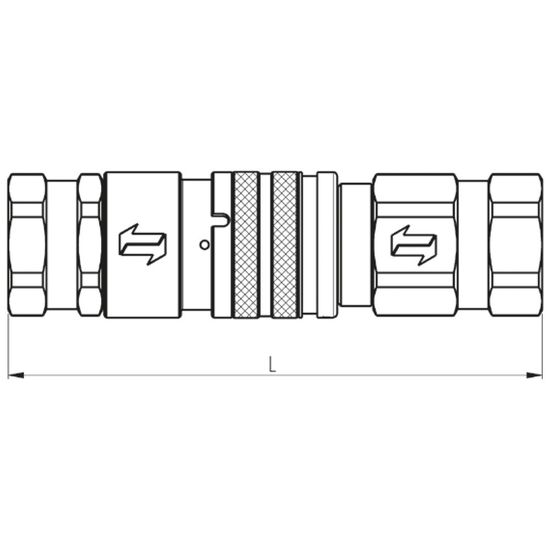

  - L 142 mm (frame + connector)
  - Y 34 mm
