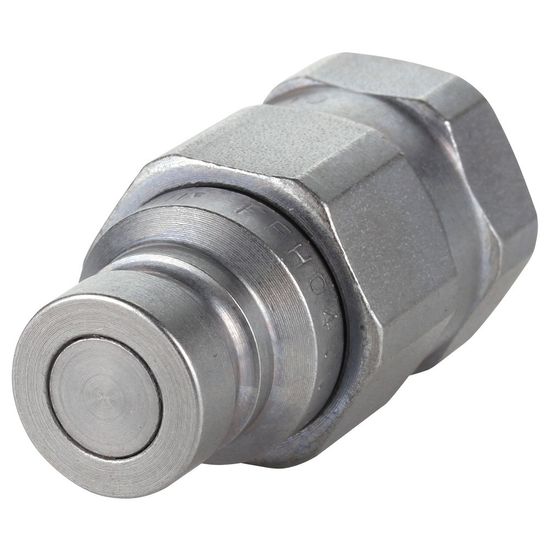

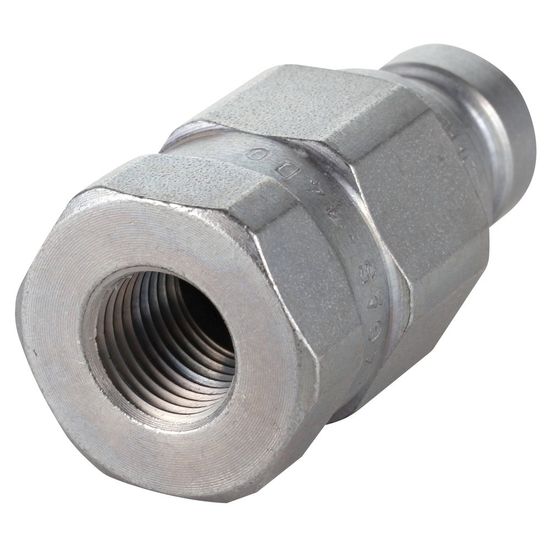

Flat-Face Quick Coupling Male 1/4" Bsp Faster

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFFH0414GASM

  ManufacturerFASTER

  Characteristics

  - flat-face quick coupling
  - interchangeable according to standard ISO 16028
  - cannot be connected/disconnected pressurized
  - working pressure 35 MPa
  - flow 25 l/min
  - burst pressure 140 MPa
  - force required for coupling: around 110 N

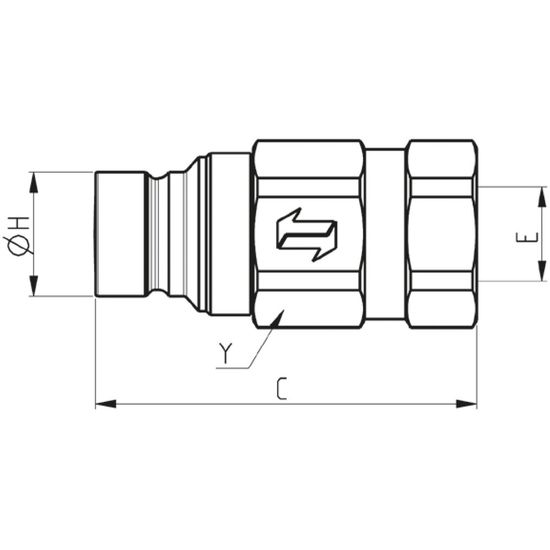

  - E thread 1/4" BSP female
  - C 49 mm
  - H 16.1 mm

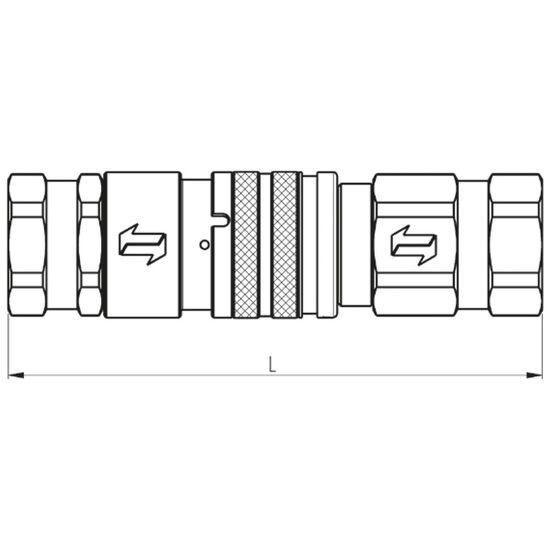

  - L 97 mm (frame + connector)
  - Y 24 mm
