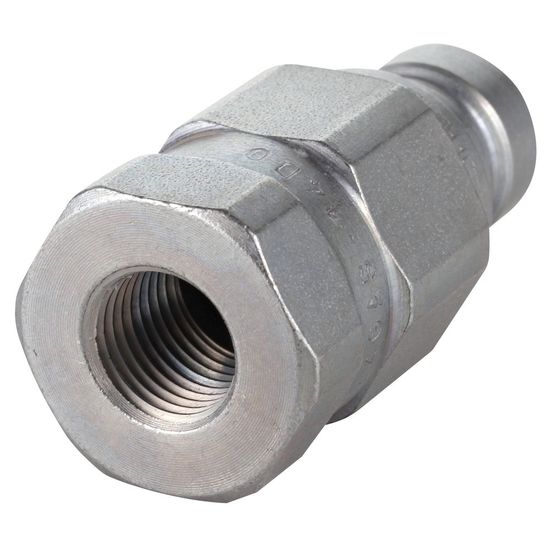

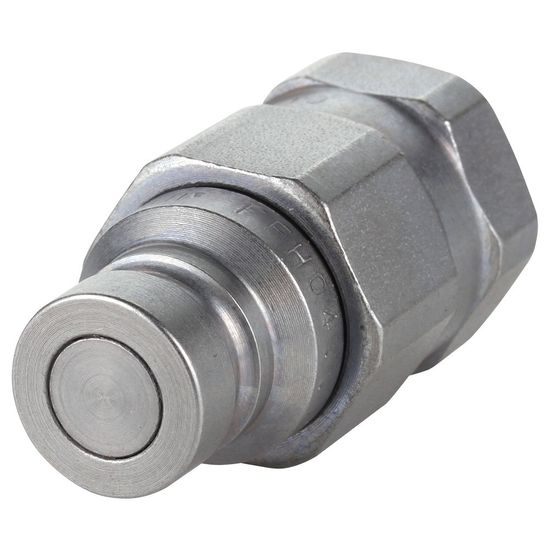

Flat-Face Quick Coupling Male 1" Bsp Faster

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFFH161GASM

  ManufacturerFASTER

  Characteristics

  - flat-face quick coupling
  - interchangeable according to standard ISO 16028
  - cannot be connected/disconnected under pressure
  - operating pressure 35 MPa
  - flow rate 230 l/min
  - burst pressure 140 MPa
  - force needed for coupling: approximately 280 N

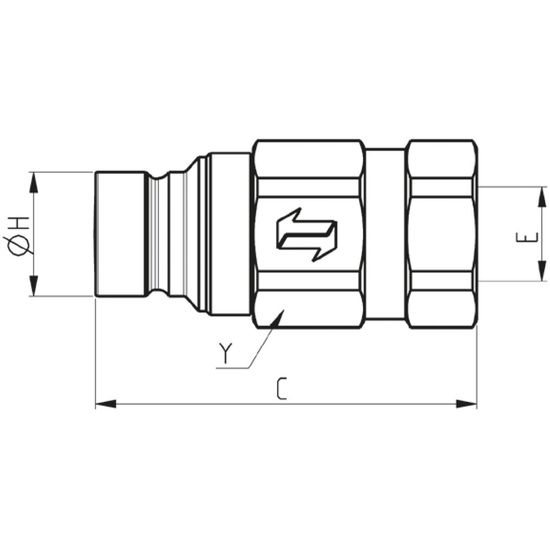

  - E thread 1" BSP female
  - C 106 mm
  - H 36 mm
  - L 183 mm (frame + connector)
  - Y 55 mm
