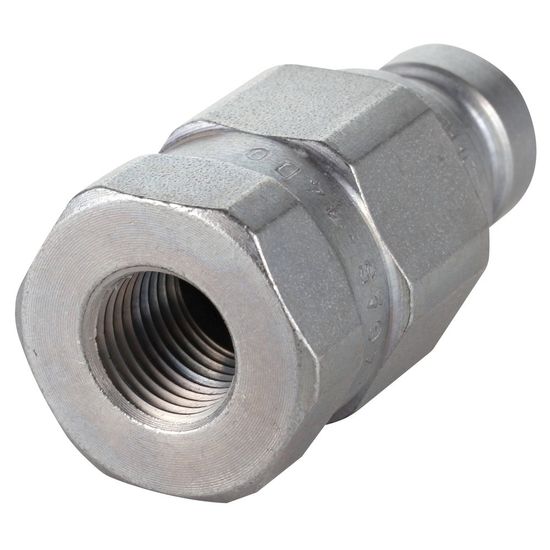

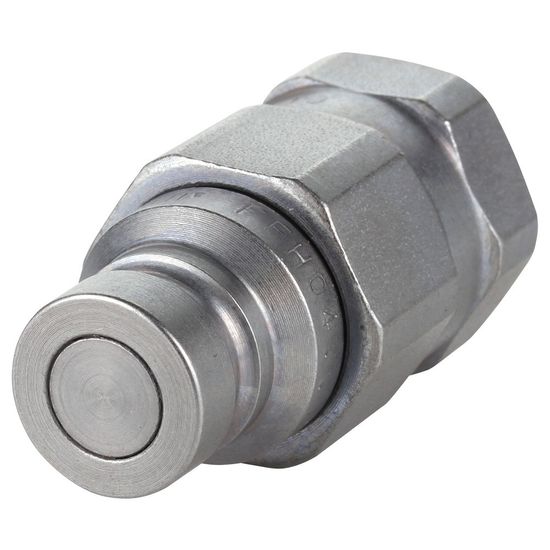

Flat-Face Quick Coupling Male 3/4" Bsp Faster

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFFH1234GASM

  Manufacturer

  Characteristics

  - flat-face quick coupling
  - interchangeable according to standard ISO 16028
  - cannot be connected/disconnected under pressure
  - working pressure 35 MPa
  - flow rate 160 l/min
  - burst pressure 140 MPa
  - coupling force required: about 215 N

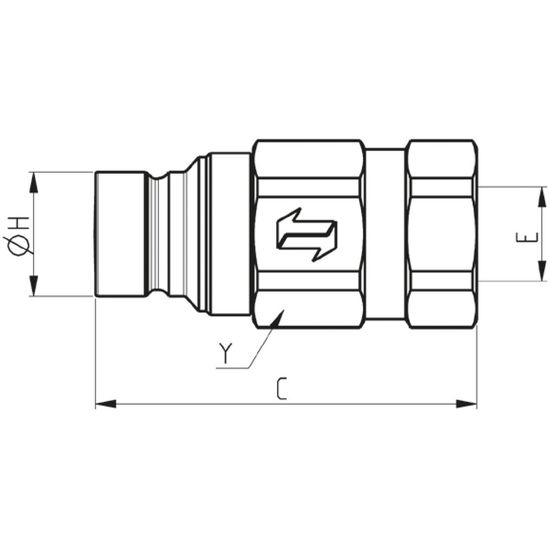

  - E thread 3/4" BSP female
  - C 102 mm
  - H 29.9 mm
  - L 180 mm (frame + connector)
  - Y 42 mm
