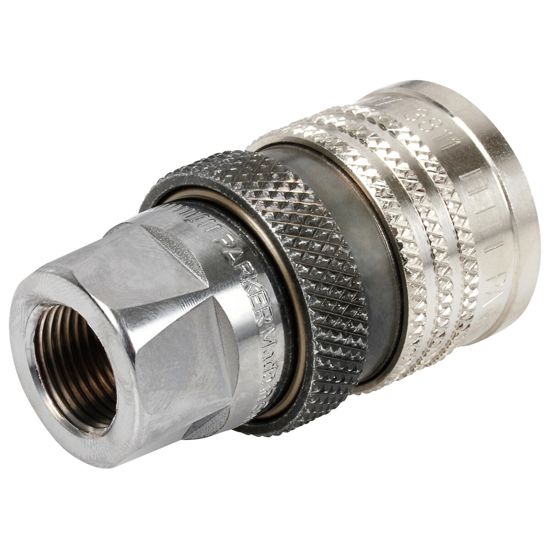

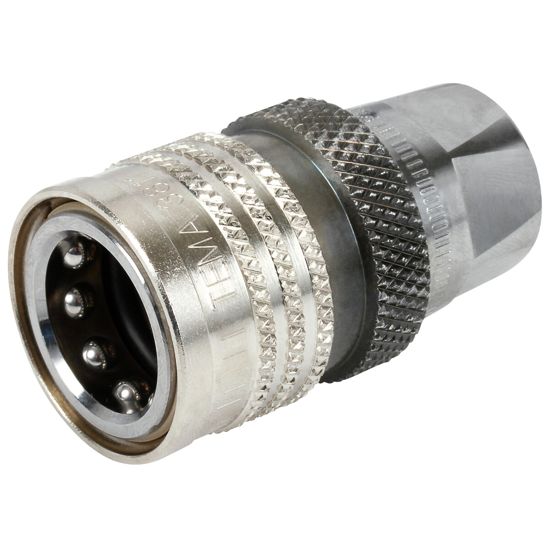

Quick coupling Tema 1/2" Female with pressure relief

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH5011IP

  Manufacturer

  Characteristics

  - Tema Quick coupling Female with tryckeliminator
  - With avstängningsvalve
  - Låga tryckfall
  - Säkerthetslåsring förhindrar ofrivillig isärcoupling
  - Korrosionsbeständig
  - Seal nitril (NBR)
  - Operating temperature -40...+100 °C
  - Applications: kemisk industry, off-shore, lyftequipment, havsvattenapplications, konstruktion, industryanläggning
  - Tryckeliminator in couplingskropp and instricksnippel that möjliggör samancoupling against resttryck/uppbyggda pressure in the system
  - Replaceable with CEJN 525 and Stucchi IRC series
  - Size 1/2"
  - Thread G 1/2" -14
  - Length 65 mm
  - Flow 110 l/min
  - Working pressure 300 bar
  - Burst pressure 1200 bar
