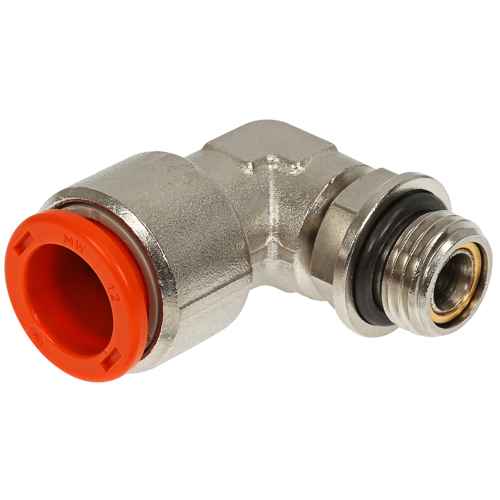

Push-In Couplings 8Mm-3/8 Angle Ext
€10
Incl. VAT

- Info
-
Stock statusProduct IDMWR310806ManufacturerMETAL WORKCharacteristics- swivel angle coupling external thread (RL31)
- material brass
- O-ring seal
- working pressure -0.99 - 16 bar
- operating temperature -20...+80 degrees Celsius
- media vacuum, compressed air
- recommended pipes: Rilsan PA 11, nylon 6, polyamide 12, polypropylene

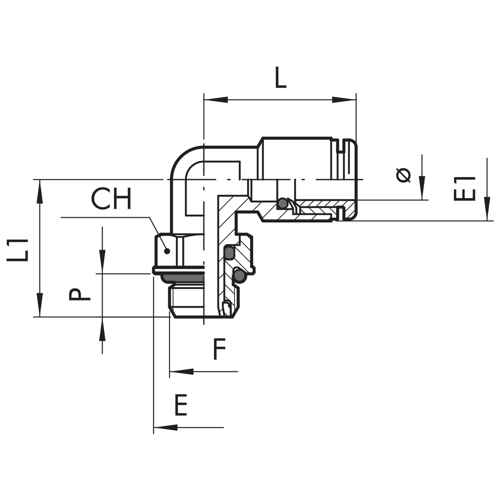

Dimensions (mm):
- tube Ø 8
- thread G 3/8"
- CH 17
- E 22
- E1 13.8
- L 23.6
- L1 27.1
- P 9 - Product groups
-
