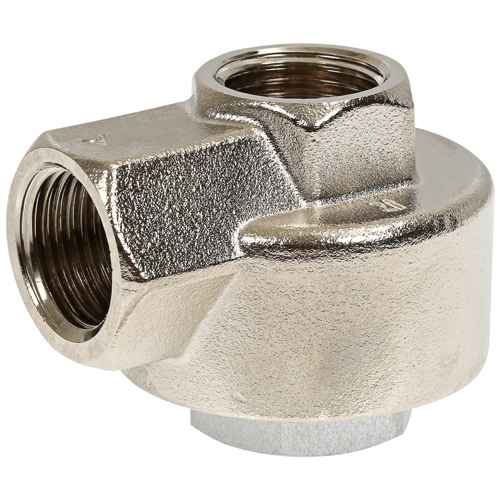

Quick Exhaust Valve 1/2 Vsr

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP9401201

  ManufacturerMETAL WORK

  Characteristics

  - VSR series
  - a new, compact and lighter model
  - used to quickly vent the cylinder increasing speed
  - material valve body nickel-plated brass, O-ring NBR
  - thread G 1/2"
  - max. pressure 12 bar
  - min. pressure 0.5 bar
  - nominal flow (P->A) 2400 Nl/min (2.5 bar) / 2800 Nl/min (4 bar) / 3600 Nl/min (6.3 bar)
  - exhaust flow (A->R) 4400 Nl/min (2.5 bar) / 6300 Nl/min (4 bar) / 8000 Nl/min (6.3 bar)
  - weight 230 g

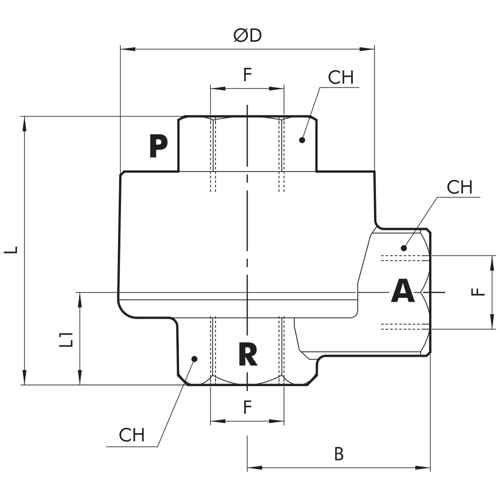

  Dimensions (mm):
  - F 1/2"
  - B 35
  - D 47
  - CH 27
  - L 45.7
  - L1 16.2
