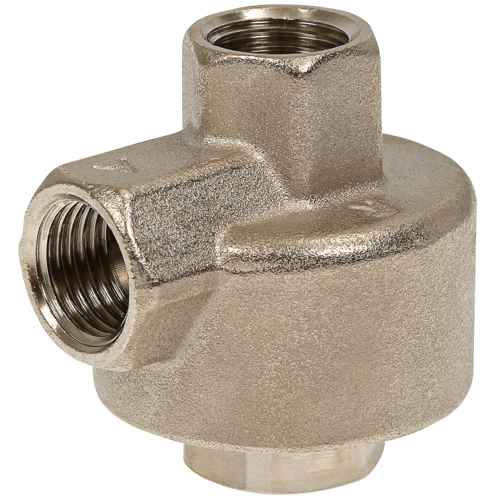

Quick Exhaust Valve 1/4 Vsr

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP9201201

  ManufacturerMETAL WORK

  Characteristics

  - VSR series
  - a new, compact and lighter model
  - used to quickly vent the cylinder increasing speed
  - material valve body nickel-plated brass, O-ring NBR
  - thread G 1/4"
  - max. pressure 12 bar
  - min. pressure 0.5 bar
  - nominal flow (P->A) 800 Nl/min (2.5 bar) / 1200 Nl/min (4 bar) / 1400 Nl/min (6.3 bar)
  - exhaust flow (A->R) 1500 Nl/min (2.5 bar) / 2450 Nl/min (4 bar) / 3500 Nl/min (6.3 bar)
  - weight 115 g

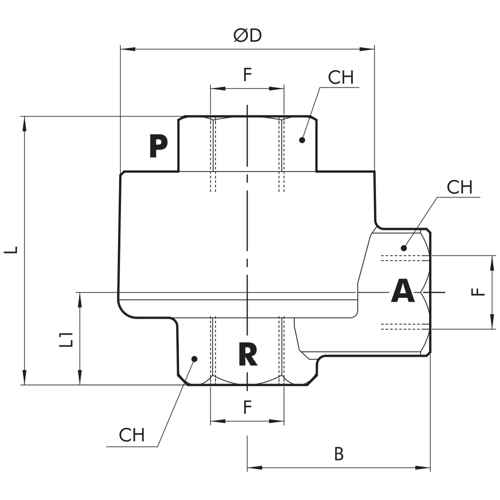

  Dimensions (mm):
  - F 1/4"
  - B 23.3
  - D 34
  - CH 17
  - L 40.5
  - L1 16.9
