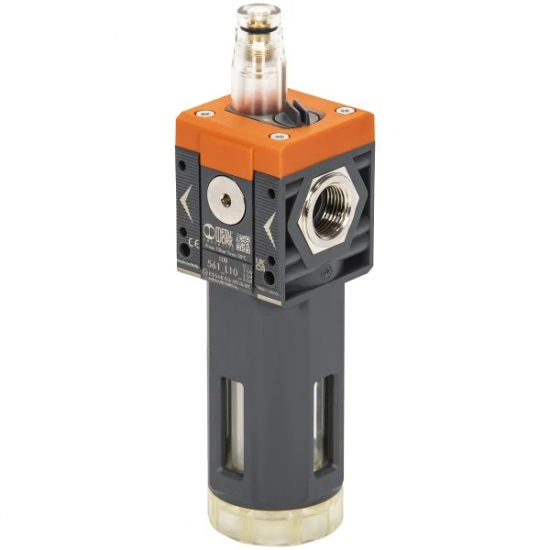

Mist lubricator 3/8 SY2 0-12bar Syntesi

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5613L103

  Manufacturer

  Characteristics

  - Syntesi series lubricator for compressed air
  - compatible with other SY2 frames; connection adapters can be used to easily connect different air preparation units
  - lubricators should be used whenever rotating or moving machinery and equipment are powered by compressed air
  - always check the recommendations and instructions for the equipment being used first
  - adjusts the oil volume according to the flow rate
  - always refill the lubricator with the system depressurised
  - max. working pressure 15 bar
  - max. air flow at 6,3 bar (pressure drop 0,5 bar) with 3/8"-connection 2300 Nl/min, with 1/2" och 3/4"-connection 3900 Nl/min
  - oil reservoir volume 130 ml
  - install vertically (oil reservoir positioned at the bottom)
