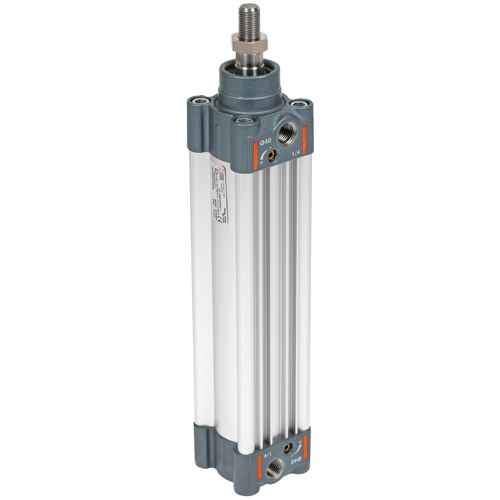

Pneumatic Cylinder 40X125 S3 Iso15552 Double-Acting

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP121040125

  ManufacturerMETAL WORK

  Characteristics

  - 2-acting standard cylinder ISO 15552, series 3
  - with magnetic piston and adjustable end position damping
  - material piston rod C45 steel, cylinder tube anodized aluminum, seal NBR
  - piston Ø 40 mm
  - rod Ø 16 mm
  - stroke length 125 mm
  - mounting screw M6
  - max. operating pressure 10 bar
  - operating temperature -10...+80 °C
  - media: lubricated or non-lubricated filtered compressed air (if using lubricated air, lubrication must not be interrupted)
