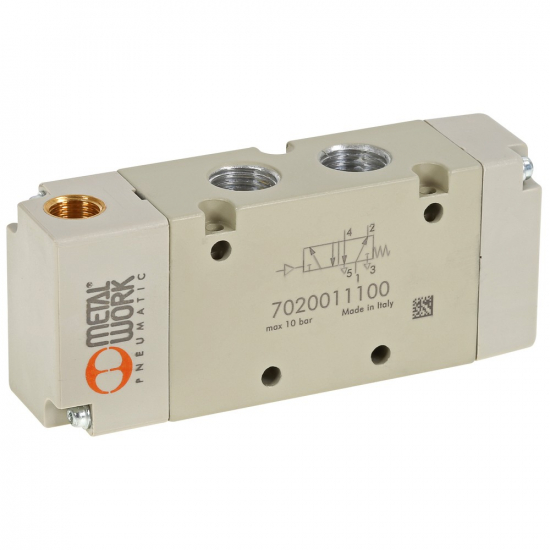

PNEUMATIC VALVE 5/2 PNV35PNS00

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP7020011100

  ManufacturerMETAL WORK

  Characteristics

  - 70 PNV series
  - material valve body aluminum, coil anodized aluminum, seals NBR
  - type monostable
  - size 1/4"

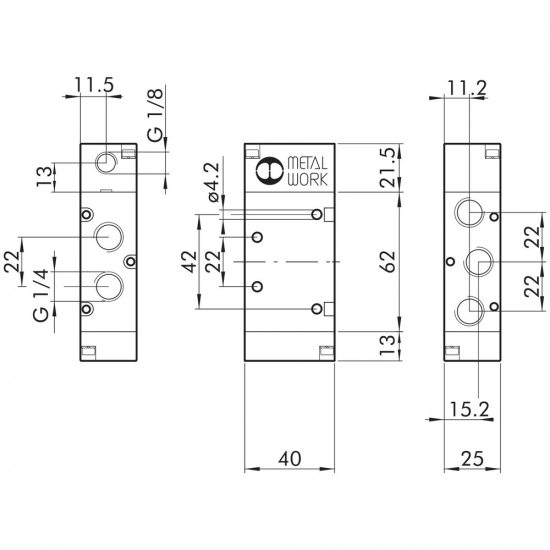

  - thread G 1/4" and G 1/8"
  - working pressure 0.99 - 10 bar
  - min. pilot pressure monostable 2.5 bar / bistable 1 bar
  - max. flow at 6 bar (pressure drop 0.5 bar) 750 Nl/min
  - max. flow at 6 bar (pressure drop 1.0 bar) 1100 Nl/min
  - operating temperature -10...+60 °C
  - media: lubricated or unlubricated filtered air

  PNV35PNS00
  - family PNV: air operated
  - size 3: 1/4"

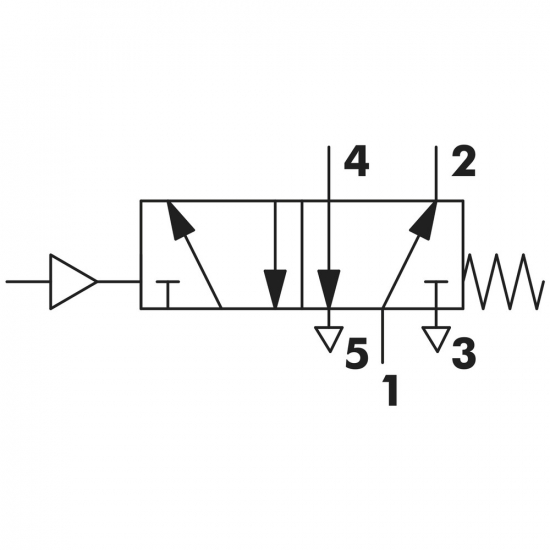

  - function 5: 5/2
  - activation 14 PN: air operated
  - return 12 S: mechanical spring
  - other specifications 00: 5/2
