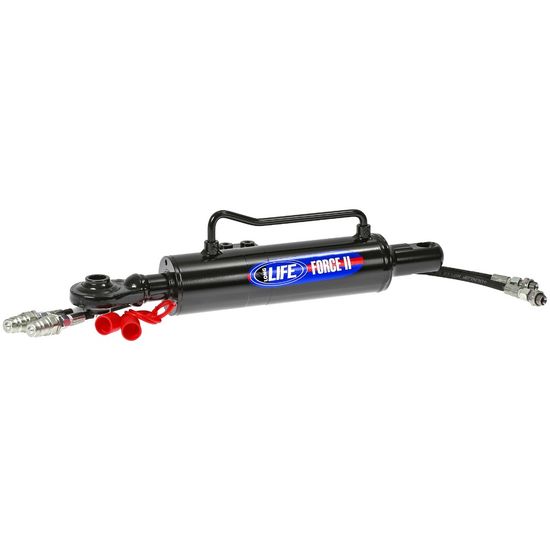

Hydraulic Top Link 80x40x526-757 Std Cat2

€667
Incl. VAT
Trackable international shipping 5-10 business days delivery Secure payments

Add to cart
Lägg i kundvagnen

bet alt
  • Info
  • Stock status
    Product IDT1625
    ManufacturerAGRILIFE

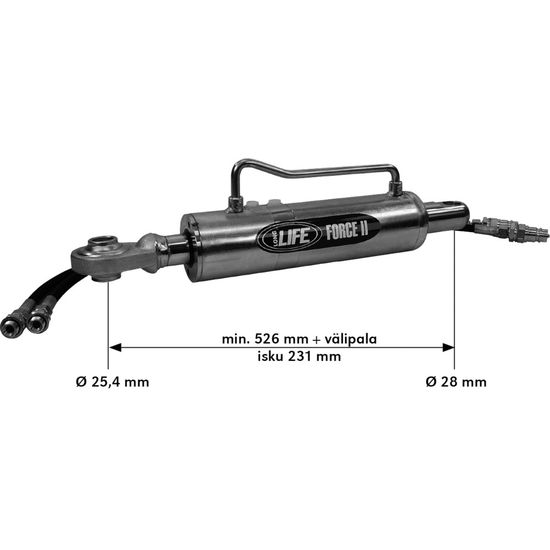

    CharacteristicsInstallation dimensions min 526 mm - max 757 mm
    Stroke length 231 mm
    Hydraulic top link from Long Life. The pressure rod is in standard design for cat 2 (25.4 mm).

    Technical specifications:
    - piston 80 mm
    - rod 40 mm
    - stroke length 231 mm
    - installation dimensions min 526 mm - max 757 mm
    - pressure force 8800 kg
    - tensile force 6600 kg (from the cylinder end)
    - joint head not included
