Hydraulic stabiliser 370–500 mm 160 bar

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDS.170047

  Manufacturer

  CharacteristicsMin. length: 370 mm
  Max. length: 500 mm

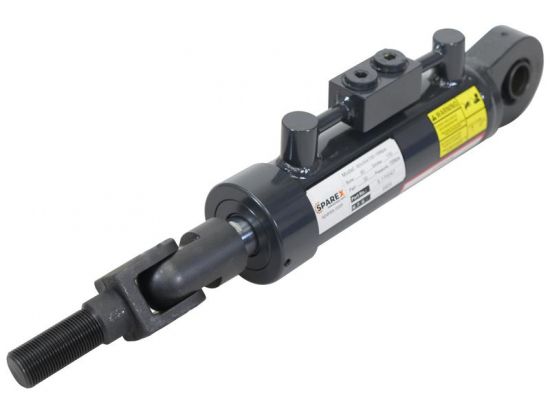

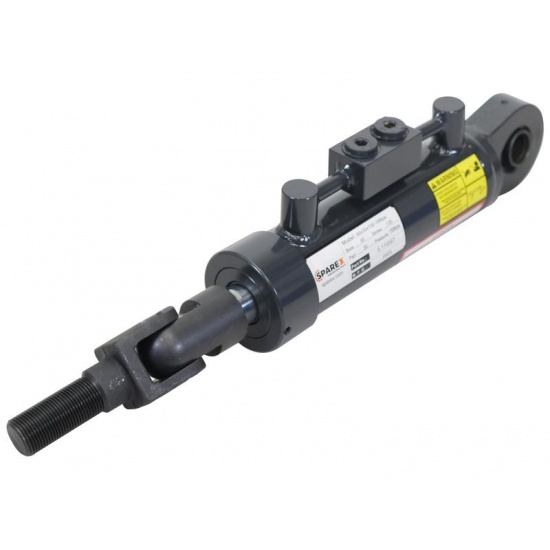

  This hydraulic stabilizer bar provides stable and reliable adjustment with a length of 370–500 mm, making it ideal for agricultural machinery requiring precision and durability. With a robust construction, high pressure capacity, and compatibility with multiple tractor brands, it is a dependable choice for demanding applications.

  Recommended for Agco, CNH, Claas with Cat 2–3 applications.

  Technical specification:
  - Min. length (mm): 370
  - Cylinder bore (mm): 60
  - Cylinder outer diameter (mm): 70
  - Cylinder stroke (mm): 225
  - Fixing hole Ø (mm): 25.4
  - Hole Ø (mm): 20
  - Max. length (mm): 500
  - Min. length (mm): 370
  - Notes: Recommended for Agco, CNH, Claas with Cat 2–3 applications
  - Max. length (mm): 595
  - Exposed piston rod length (mm): 70
  - Piston rod Ø (mm): 30
  - Pull force kg at 180 bar: 3393
  - Push force kg at 180 bar: 4524

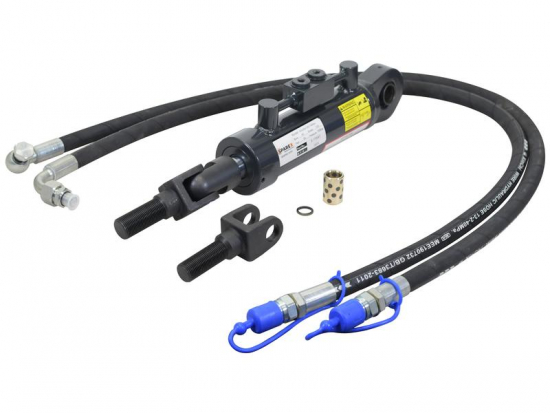

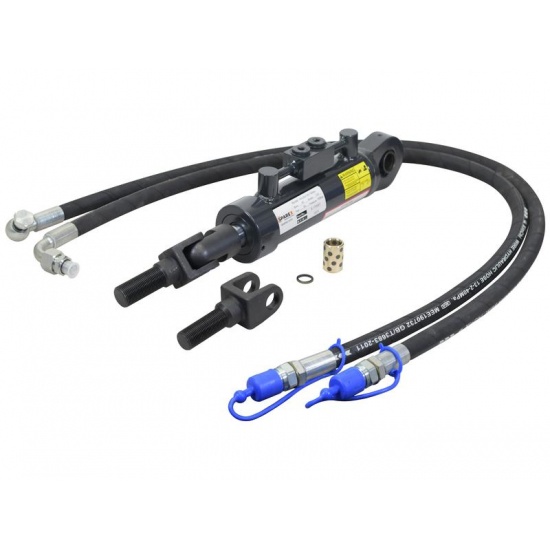

  - Supplied with: Hydraulic cylinder x1, 1400 mm hydraulic hose with fittings x2, M24 threaded knuckle x1, M27 threaded knuckle x1, 25.4 mm to 19 mm reducer bush x1
  - Thread size: G3/8
  - Working pressure (bar): 160
