Top Link M36X3 2-3 645-905 in the group Machine and Tractor Accessories / 3-Point Hitch Parts / Top Links and Accessories at Sagroparts (T0113)

Top Link M36X3 2-3 645-905

€113

Incl. VAT

5-10 business days delivery Trackable international shipping Secure payments

Info
Stock status

Product IDT0113

ManufacturerAGRILIFE

CharacteristicsCAT 2 (25.4 mm) / CAT 3 (31.8 mm)
Adjustment range 645 - 905 mm

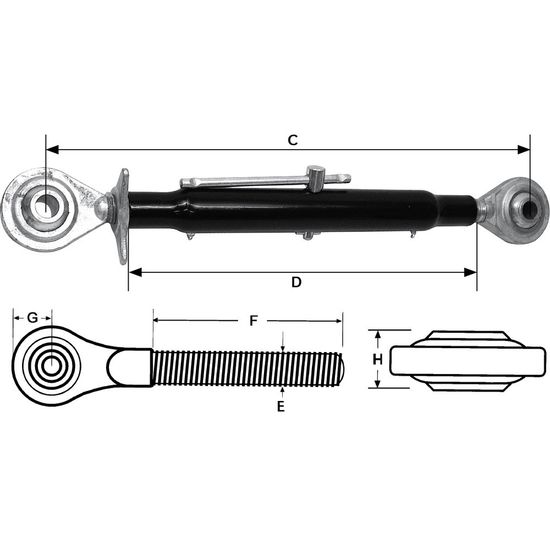

- head: CAT 2 (25.4 mm) / CAT 3 (31.8 mm)
- adjustment (C): min. 645 mm, max. 905 mm
- frame length (D): 485 mm
- thread (E): M36x3
- F: 175 mm
- G: 48 mm
- H: 50 mm
- weight: 9.4 kg
