Ball bearing 12X24X6 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW61901-2RS1

  Manufacturer

  Characteristics

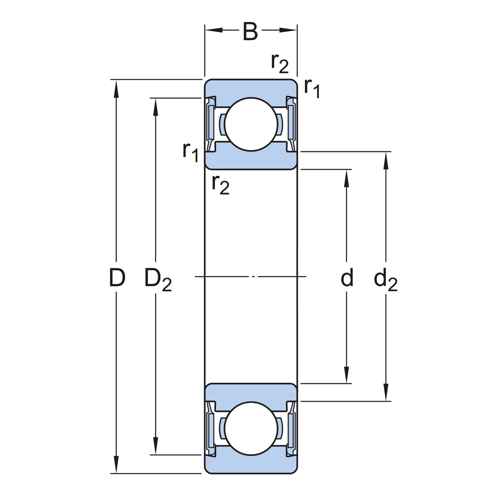

  Dimensions:
  - bore diameter (d) 12 mm
  - outside diameter (D) 24 mm
  - width (B) 6 mm
  - diameter for inner ring shoulder clearance (d2) 15.35 mm
  - diameter for outer ring shoulder clearance (D2) 21.4 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

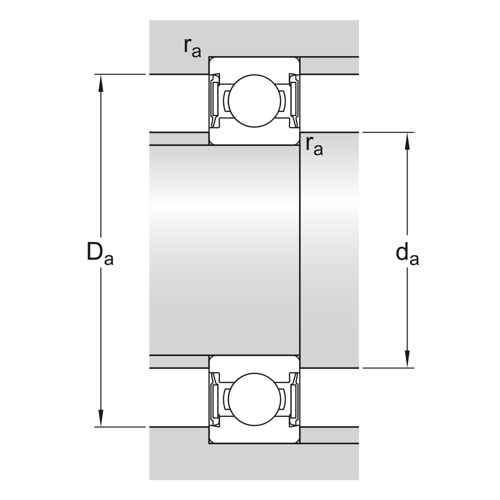

  Mounting dimensions:
  - shaft bore diameter (da) min. 14 mm
  - shaft bore diameter (da) max. 15 mm
  - housing bore diameter (Da) max. 22 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 2.51 kN
  - static load rating (C0) 1.46 kN
  - fatigue load limit (Pu) 0.062 kN
  - limiting speed 19000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 14.5
