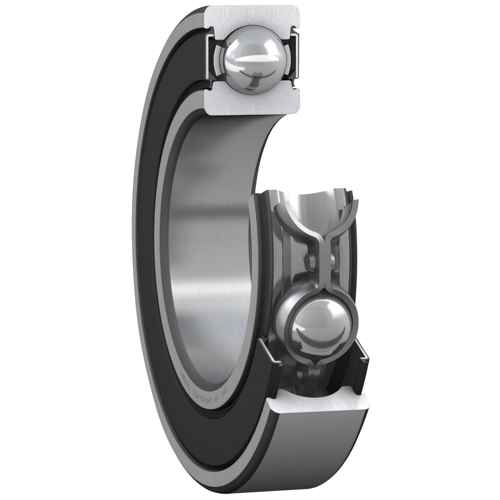

Ball bearing 12X37X12 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6301-2RSHC3

  Manufacturer

  Characteristics

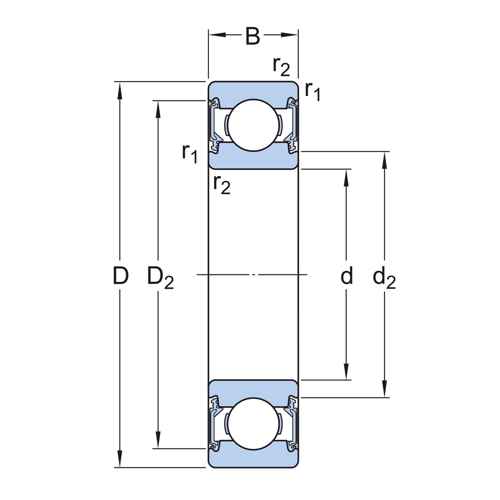

  Dimensions:
  - bore diameter (d) 12 mm
  - outer diameter (D) 37 mm
  - width (B) 12 mm
  - diameter for inner ring abutment (largest side face) (d2) 17.5 mm
  - diameter for outer ring abutment shoulder (D2) 31.48 mm
  - outer ring chamfer dimension (r1,2) min. 1 mm

  Installation dimensions:
  - axle housing bore diameter (da) min. 17.6 mm
  - axle housing bore diameter (da) max. 17.8 mm
  - housing bore diameter (Da) max. 31.4 mm
  - fillet radius (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 10.1 kN
  - static load rating (C0) 4.15 kN
  - fatigue load limit (Pu) 0.176 kN
  - limiting speed 14000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 11
