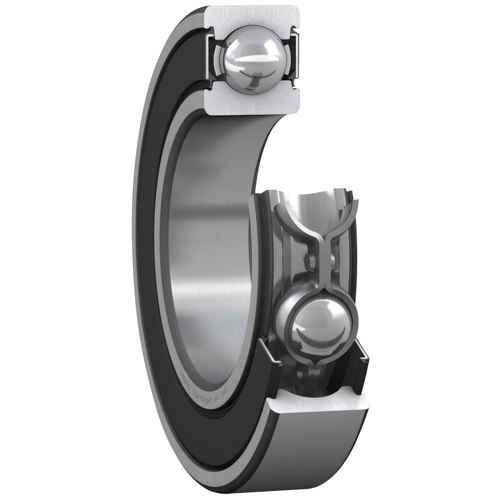

Ball bearing 15X42X13 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6302-2RSHC3

  Manufacturer

  Characteristics

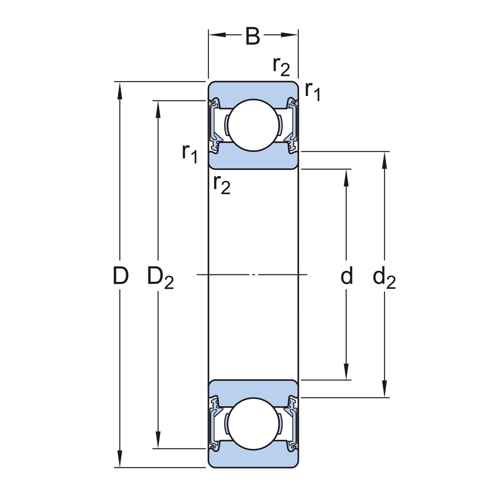

  Dimensions:
  - bore diameter (d) 15 mm
  - outer diameter (D) 42 mm
  - width (B) 13 mm
  - diameter for inner ring abutment (largest side face) (d2) 20.65 mm
  - diameter for outer ring abutment shoulder (D2) 36.23 mm
  - outer ring chamfer dimension (r1,2) min. 1 mm

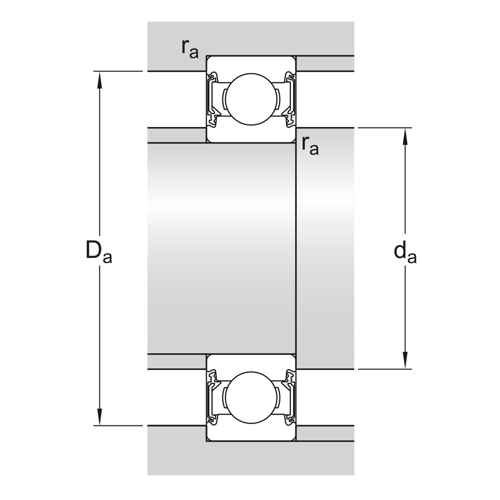

  Installation dimensions:
  - axle housing bore diameter (da) min. 20.6 mm
  - axle housing bore diameter (da) max. 21 mm
  - housing bore diameter (Da) max. 36.4 mm
  - fillet radius (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 11.9 kN
  - static load rating (C0) 5.4 kN
  - fatigue load limit (Pu) 0.228 kN
  - limiting speed 12000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 12
