Ball bearing 30X72X19 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6306-2RS1C3

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 30 mm
  - outer diameter (D) 72 mm
  - width (B) 19 mm
  - inner ring shoulder diameter (d1) 44.6 mm
  - diameter for outer ring abutment shoulder (D2) 61.88 mm
  - outer ring chamfer dimension (r1,2) min. 1.1 mm

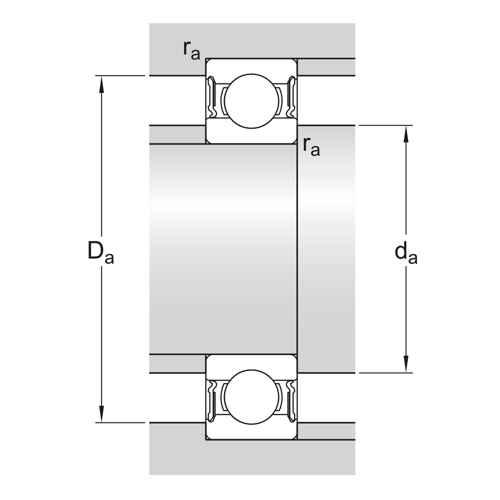

  Installation dimensions:
  - axle housing bore diameter (da) min. 37 mm
  - axle housing bore diameter (da) max. 44.5 mm
  - housing bore diameter (Da) max. 65 mm
  - fillet radius (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 29.6 kN
  - static load rating (C0) 16 kN
  - fatigue load limit (Pu) 0.67 kN
  - limiting speed 6300 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 13.1
