Ball bearing 40X80X18 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF6208-2RS1C3

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 40 mm
  - outside diameter (D) 80 mm
  - width (B) 18 mm
  - inner ring shoulder diameter (d1) 52.6 mm
  - diameter for outer ring shoulder (D2) 69.8 mm
  - outer ring chamfer dimension (r1,2) min. 1.1 mm

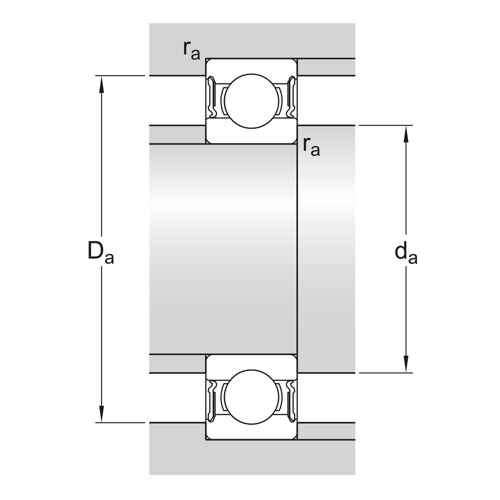

  Mounting dimensions:
  - shaft minimum seating diameter (da) 47 mm
  - shaft maximum seating diameter (da) 52.5 mm
  - housing maximum seating diameter (Da) 73 mm
  - fillet radius (ra) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 32.5 kN
  - static load rating (C0) 19 kN
  - fatigue load limit (Pu) 0.8 kN
  - limiting speed 5600 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 13.8
