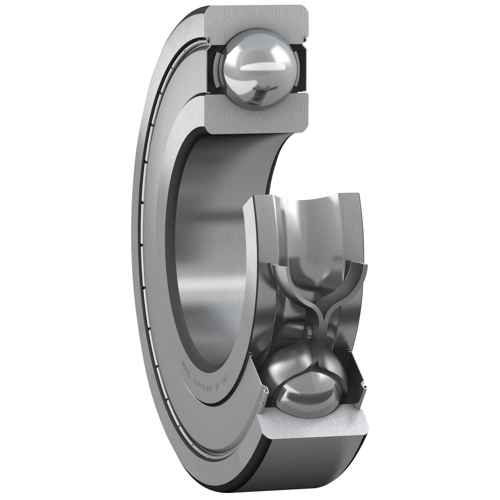

Ball bearing 5X11X5 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6385-2Z

  Manufacturer

  Characteristics

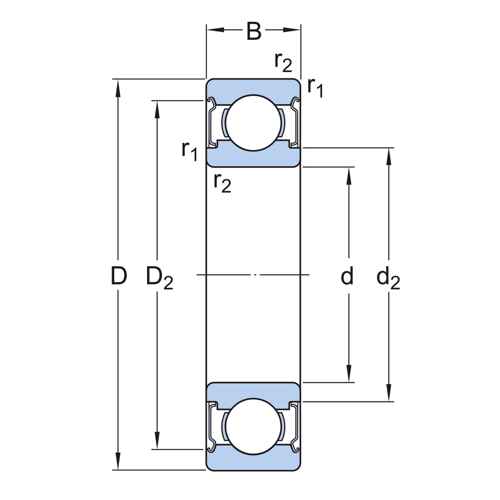

  Dimensions:
  - bore diameter (d) 5 mm
  - outside diameter (D) 11 mm
  - width (B) 5 mm
  - diameter for inner ring shoulder clearance (d2) 6.2 mm
  - diameter for outer ring shoulder clearance (D2) 9.9 mm
  - outer ring chamfer dimension (r1,2) min. 0.15 mm

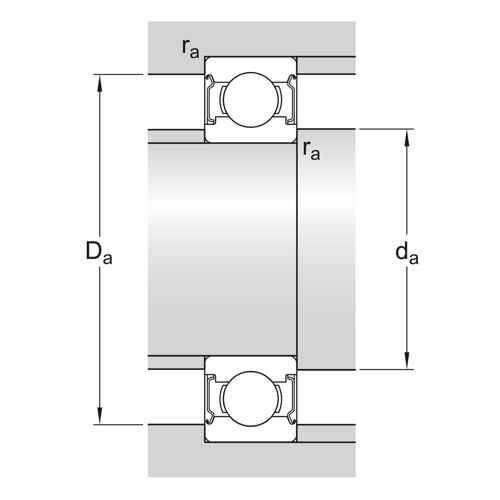

  Installation dimensions:
  - shaft bore diameter (da) min. 5.9 mm
  - shaft bore diameter (da) max. 6.1 mm
  - housing bore diameter (Da) max. 10 mm
  - chamfer dimension (ra) max. 0.15 mm

  Calculated data:
  - dynamic load rating (C) 0.403 kN
  - static load rating (C0) 0.143 kN
  - fatigue load limit (Pu) 0.006 kN
  - reference speed 120000 r/min
  - limiting speed 60000 r/min
  - calculation factor (kr) 0.02
  - calculation factor (f0) 7.1
