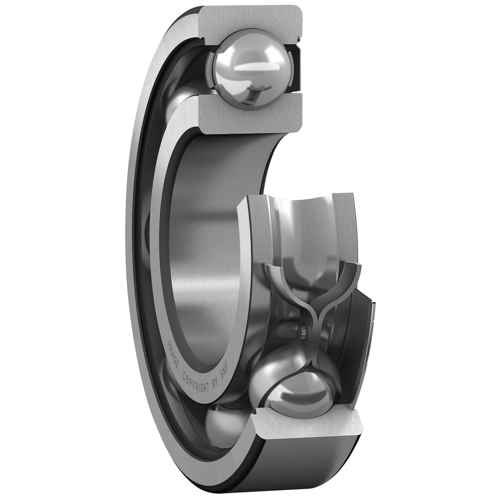

Ball bearing 5X16X5 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF625-2ZC3

  Manufacturer

  Characteristics

  Dimensions:
  - bore diameter (d) 5 mm
  - outside diameter (D) 16 mm
  - width (B) 5 mm
  - inner ring shoulder diameter (d1) 8.4 mm
  - diameter for outer ring shoulder (D2) 13.22 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

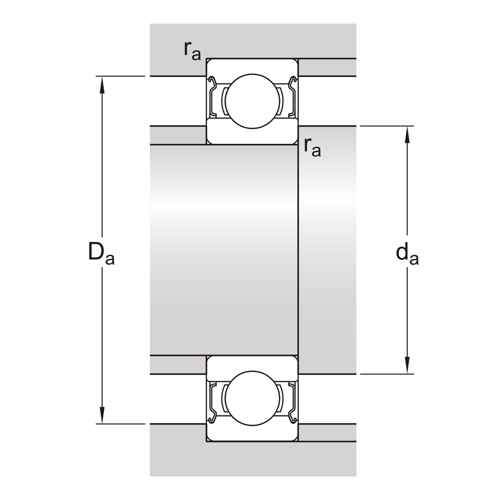

  Mounting dimensions:
  - shaft minimum seating diameter (da) 7.4 mm
  - shaft maximum seating diameter (da) 8.3 mm
  - housing maximum seating diameter (Da) 13.6 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 1.14 kN
  - static load rating (C0) 0.38 kN
  - fatigue load limit (Pu) 0.016 kN
  - reference speed 95000 r/min
  - limiting speed 48000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 8.4
