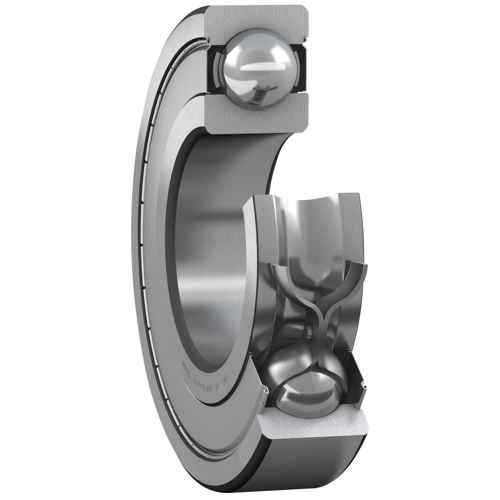

Ball bearing 6X19X6 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW626-2Z

  Manufacturer

  Characteristics

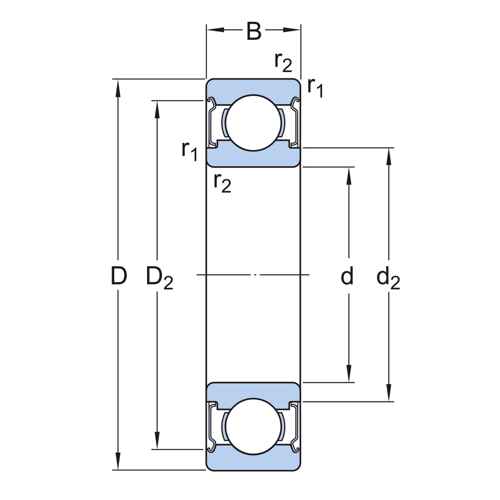

  Dimensions:
  - bore diameter (d) 6 mm
  - outside diameter (D) 19 mm
  - width (B) 6 mm
  - diameter for inner ring shoulder clearance (d2) 8.5 mm
  - diameter for outer ring shoulder clearance (D2) 16.5 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

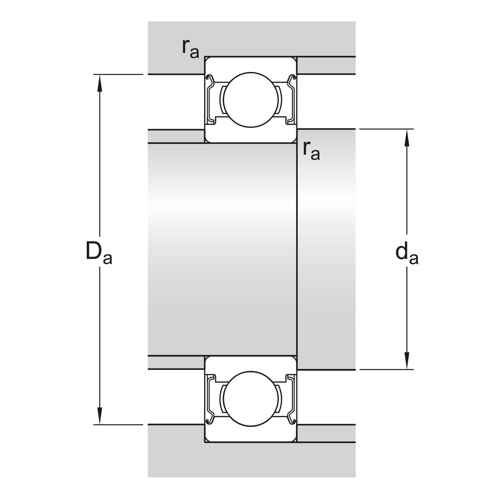

  Installation dimensions:
  - shaft bore diameter (da) min. 8 mm
  - shaft bore diameter (da) max. 8.4 mm
  - housing bore diameter (Da) max. 17 mm
  - chamfer dimension (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 1.53 kN
  - static load rating (C0) 0.585 kN
  - fatigue load limit (Pu) 0.025 kN
  - reference speed 85000 r/min
  - limiting speed 43000 r/min
  - calculation factor (kr) 0.03
  - calculation factor (f0) 7.9
