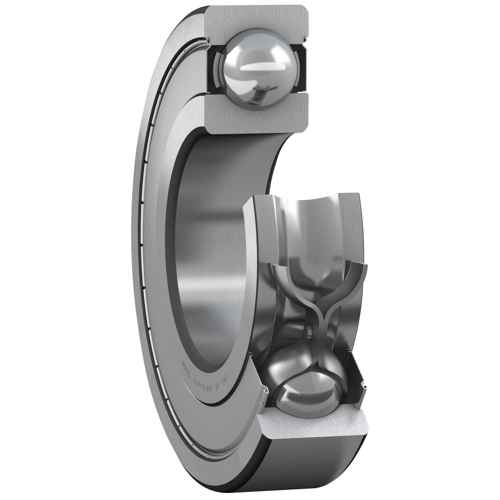

Ball bearing 9X20X6 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKFW6199-2Z

  Manufacturer

  Characteristics

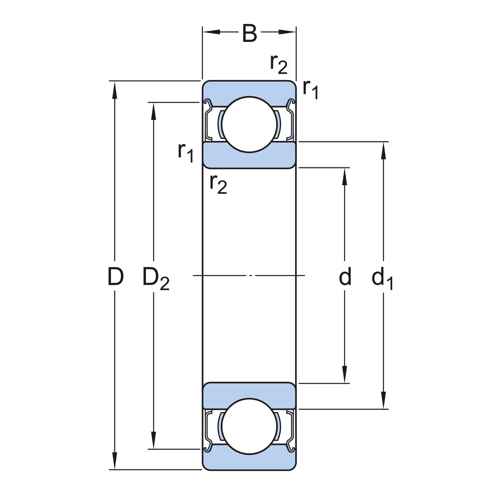

  Dimensions:
  - bore diameter (d) 9 mm
  - outside diameter (D) 20 mm
  - width (B) 6 mm
  - inner ring shoulder diameter (d1) 11.61 mm
  - diameter for inner ring shoulder clearance (d2) 11.61 mm
  - diameter for outer ring shoulder clearance (D2) 17.44 mm
  - outer ring chamfer dimension (r1,2) min. 0.3 mm

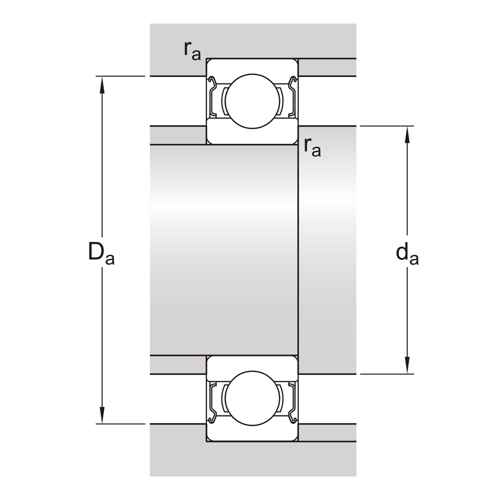

  Mounting dimensions:
  - shaft bore diameter (da) min. 11 mm
  - shaft bore diameter (da) max. 11.1 mm
  - housing bore diameter (Da) max. 18 mm
  - fillet radius (ra) max. 0.3 mm

  Calculated data:
  - dynamic load rating (C) 1.95 kN
  - static load rating (C0) 0.93 kN
  - fatigue load limit (Pu) 0.045 kN
  - reference speed 80000 r/min
  - limiting speed 40000 r/min
  - calculation factor (kr) 0.025
  - calculation factor (f0) 11.6
