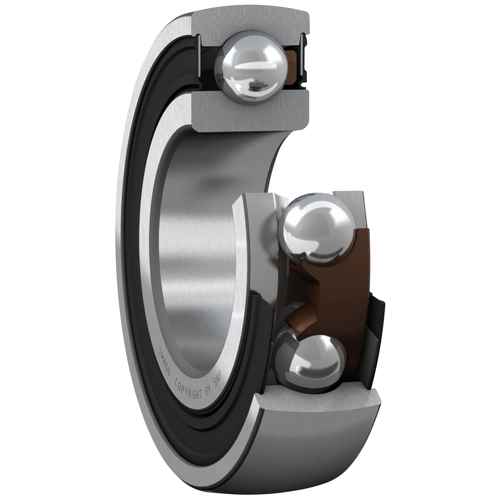

Insert Bearing 20X47X14 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF1726204-2RS1

  Manufacturer

  Characteristics

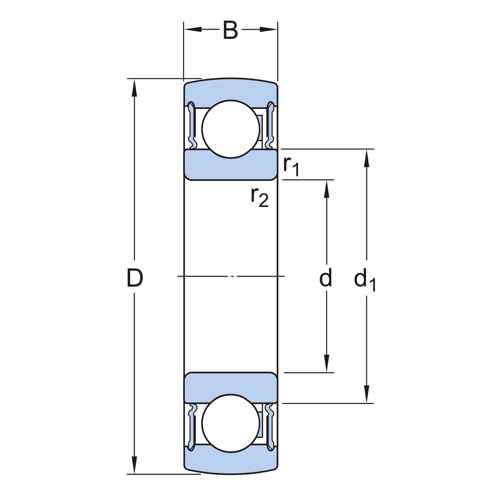

  Dimensions:
  - bore diameter (d) 20 mm
  - outer diameter (D) 47 mm
  - width of inner ring (B) 14 mm
  - inner ring's outside diameter (d1) 28.8 mm
  - fillet radius (r1,2) min. 1 mm

  Calculated data:
  - dynamic load rating (C) 12.7 kN
  - static load rating (C0) 6.55 kN
  - fatigue load limit (Pu) 0.28 kN
  - limiting speed 10000 r/min
  - calculation factor (f0) 13
