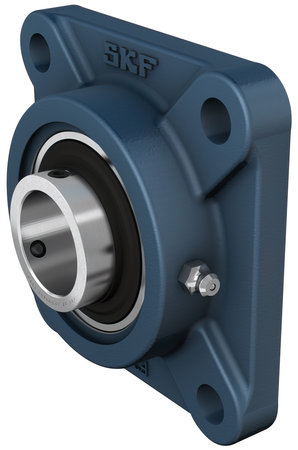

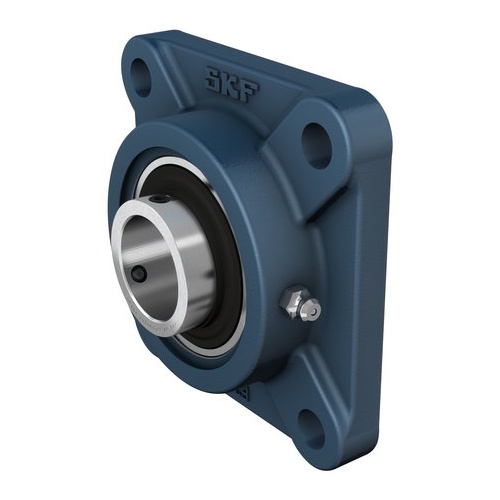

Bearing 60mm Flange

• Info
• Stock status

  Product IDLUCF212

  Manufacturer

  Characteristics

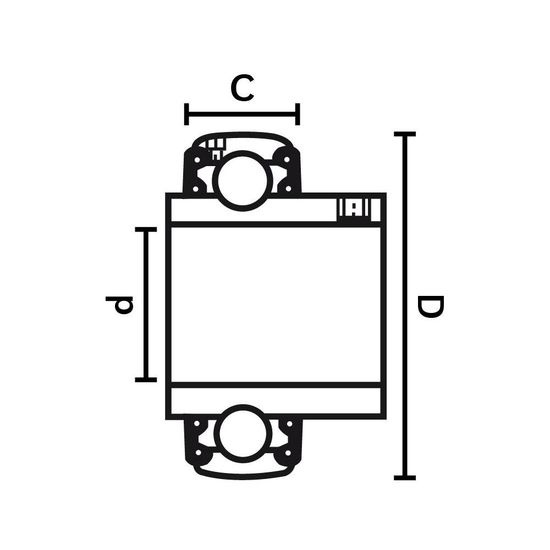

  Dimensions:
  - shaft diameter (d) 60 mm
  - outer ring diameter (d1) 75.64 mm
  - total width (A) 47.5 mm
  - flange width (A1) 18 mm
  - offset, end cover (A5) 39 mm
  - bearing total width (B) 65.1 mm
  - distance from lock device side to thread center (B4) 10 mm
  - end outer diameter (Db1) 140 mm
  - distance between mounting bolts (J) 143 mm
  - total length (L) 175 mm
  - diameter, hole for mounting bolt (N) 19 mm
  - distance from lock device side to bearing insert center (s1) 39.7 mm
  - unit total width (T) 68.7 mm
  - grease nipple main diameter (DN) 6.589 mm
  - wrench size for grease nipple (SWN) 11.11 mm
  - thread for grease nipple (GN) 1/8-27 NPT
  - housing thread for grease nipple (RG) 1/8-27 NPT
  - axial position of housing thread (R1) 33 mm

  Calculated data:
  - dynamic load rating (C) 52.7 kN
  - static load rating (C0) 36 kN
  - fatigue load limit (Pu) 1.53 kN
  - limiting speed 2700 r/min
