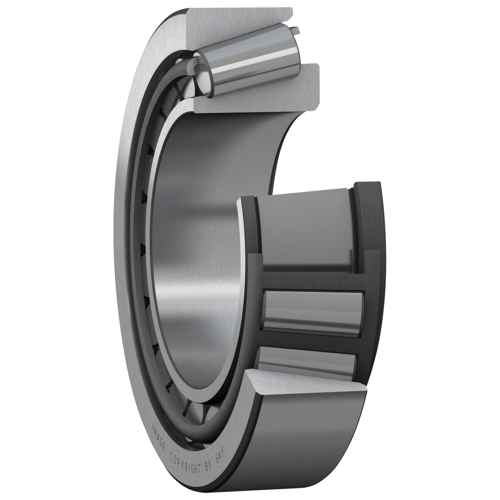

Tapered Spherical Roller Bearing 30X62X16 Skf

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSKF30206

  Manufacturer

  Characteristics

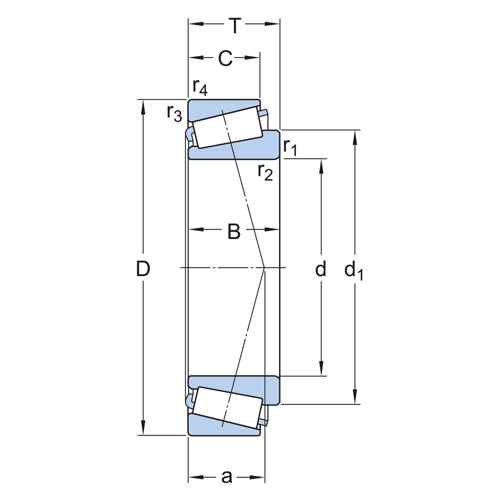

  Dimensions:
  - bore diameter (d) 30 mm
  - outer diameter (D) 62 mm
  - total bearing width (T) 17.25 mm
  - diameter for inner ring shoulder (d1) 45.3 mm
  - width of inner ring (B) 16 mm
  - width of outer ring (C) 14 mm
  - inner ring corner radius (r1,2) min. 1 mm
  - outer ring corner radius (r3,4) min. 1 mm
  - contact distance (a) 13.65 mm

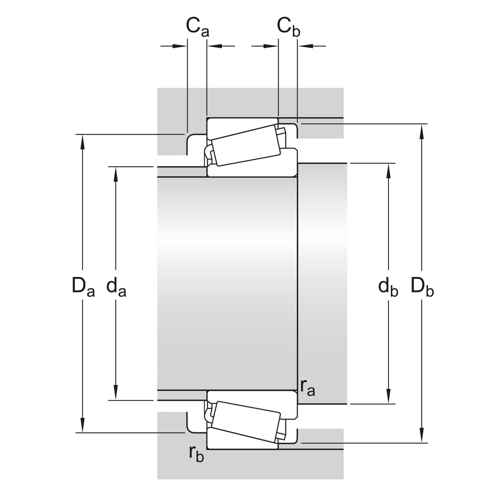

  Installation dimensions:
  - shaft bore diameter (da) max. 38 mm
  - shaft bore diameter (db) min. 37 mm
  - housing bore diameter (Da) min. 53 mm
  - housing bore diameter (Da) max. 56 mm
  - housing bore diameter (Db) min. 57 mm
  - housing axial clearance on the large side face of the outer ring (Ca) min. 2 mm
  - housing axial clearance on the small side face of the outer ring (Cb) min. 3 mm
  - chamfer dimension (ra) max. 1 mm
  - chamfer dimension (rb) max. 1 mm

  Calculated data:
  - dynamic load rating (C) 50 kN
  - static load rating (C0) 44 kN
  - fatigue load limit (Pu) 4.8 kN
  - reference speed 9000 r/min
  - limiting speed 11000 r/min
  - calculation factor (e) 0.37
  - calculation factor (Y) 1.6
  - calculation factor (Y0) 0.9
