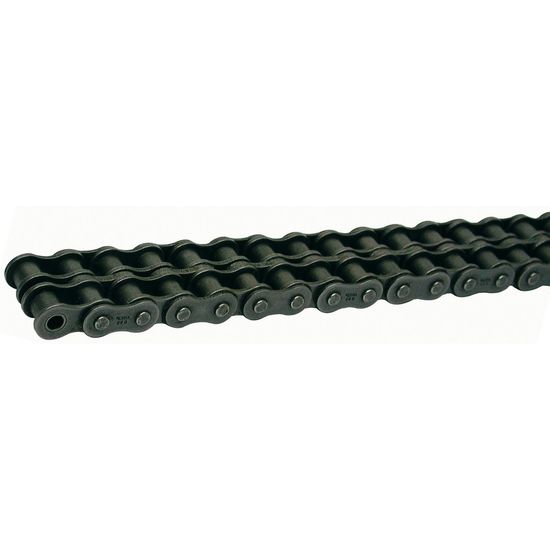

Roller chain 3/4 Din8187 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK12B2

  Manufacturer

  Characteristics- Length: 5 meters
  - division 3/4 inch

  - Length: 5 meters
  - Pitch: 3/4"

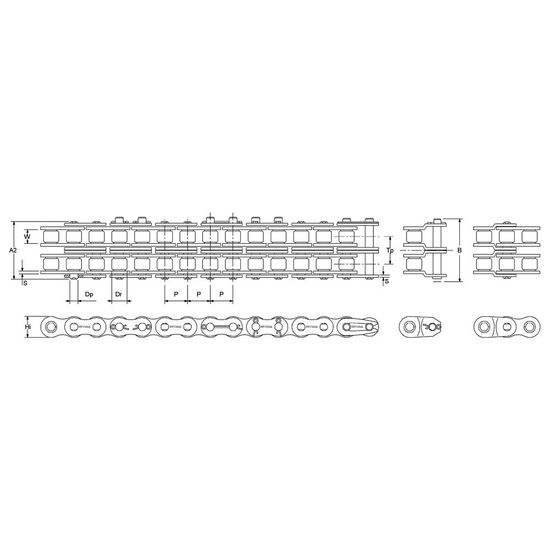

  - DR roller Ø mm: 12.07
  - W internal dimension min. mm: 11.68
  - HI max. height mm: 16.13
  - S material thickness mm: 1.85 / 1.70
  - TP pitch: 19.46
  - DP pin thickness max. mm: 5.72
  - A2 width from the end of the rivet mm: 42.0
  - B extension width mm: 51.2
  - bearing area mm²: 178
  - breaking load N: 560
  - min. breaking strength kN: 57.8
  - average breaking strength kN: 66.00
  - weight kg/m: 2.40
