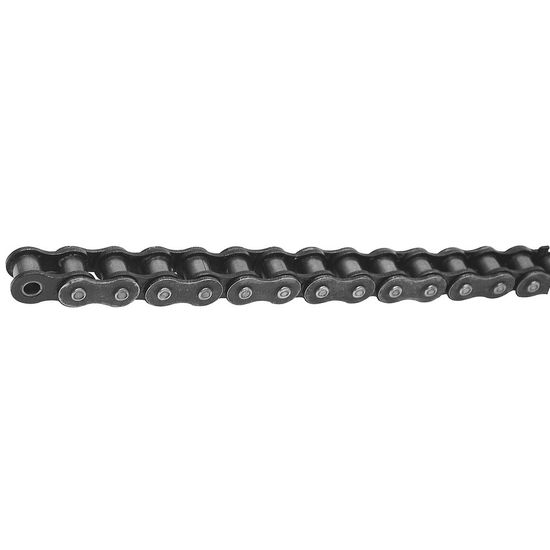

Roller chain 5/8 Din8187 - Sold per metre

Qty:	5 10 15 20 25 30 35 40 45 50

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK10B1

  Manufacturer

  CharacteristicsPRICE/METER
  - Sold per 5 meters

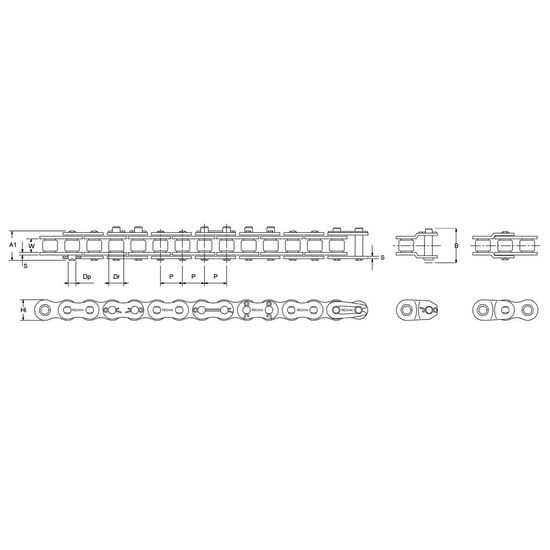

  - division 5/8 inch

  - Length: 5 meters
  - Pitch: 5/8"
  - DR roller Ø mm: 10.16
  - W inner dimension min. mm: 9.65
  - HI height max. mm: 14.73
  - S material thickness mm: 1.63 / 1.53
  - DP pin thickness max. mm: 5.08
  - A1 width from rivet end mm: 19.10
  - B extension width mm: 27
  - contact area mm²: 69
  - breaking load N: 200
  - min. breaking strength kN: 22.30
  - average breaking strength kN: 24.80
  - weight kg/m: 0.88
