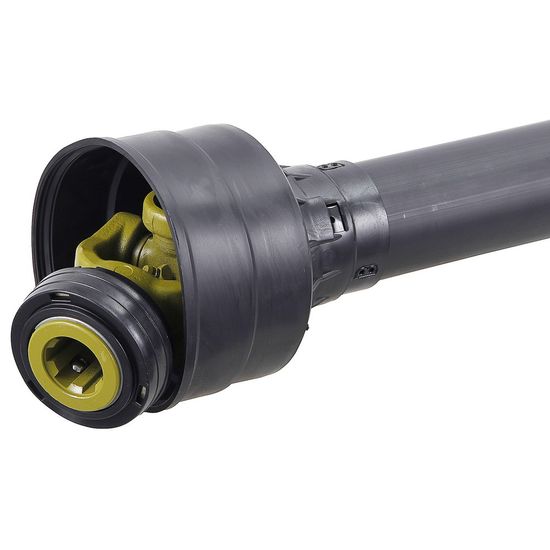

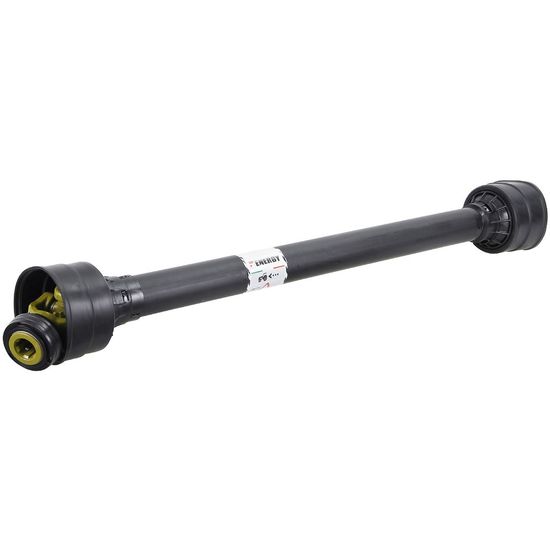

PTO Shaft B103 Long 1.3/8-6

€325
Incl. VAT
Trackable international shipping 5-10 business days delivery Secure payments

Add to cart
Add to cart

bet alt
  • Info
  • Stock status
    Product IDT822001
    ManufacturerBENZI DI TERLIZZI
    Characteristics
    - type: B03 (103)
    - splines: 6
    - power 540 rpm: 22 kW / 30 hp / 390 Nm
    - power 1000 rpm: 35 kW / 47 hp / 330 Nm
    - length: L 1010 mm, M min. 1214 mm, max. 1654 mm
    - cross size: A/B: 27 x 70 mm
    - inner tube: A 36 mm, S 3.2 mm
    - outer tube: A 43.5 mm, S 3.4 mm
    - max. static load 640 Nm
    - applications: rakes, hay tedders, plows, small sprinklers, utility trailers

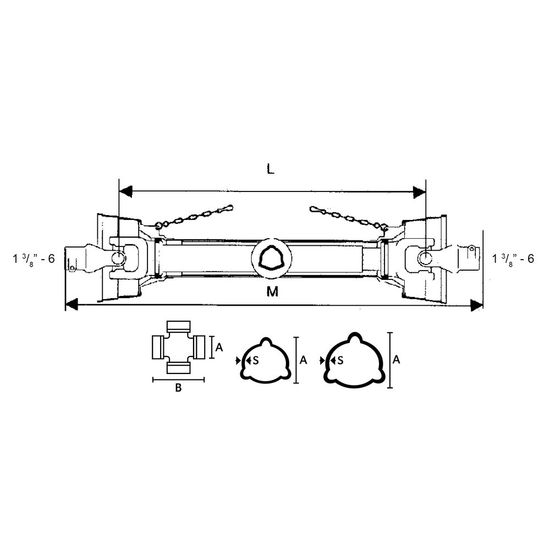

    - see image for dimensions
    - values established with continuous load, 5° angle and 1000 operating hours

    NOTE! must be lubricated before use.
