  Product IDT824286

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: B05 (105), disc clutch FF1 900 Nm
  - splines: 6
  - power 540 rpm: 35 kW / 47 hp / 620 Nm
  - power 1000 rpm: 54 kW / 74 hp / 520 Nm
  - length: L 860 mm, M min. 1150 mm, max. 1510 mm
  - universal joint: A/B: 30.2 x 80 mm
  - inner tube: A 45 mm, S 4 mm
  - outer tube: A 51.6 mm, S 3 mm
  - applications: trailers, snow blowers

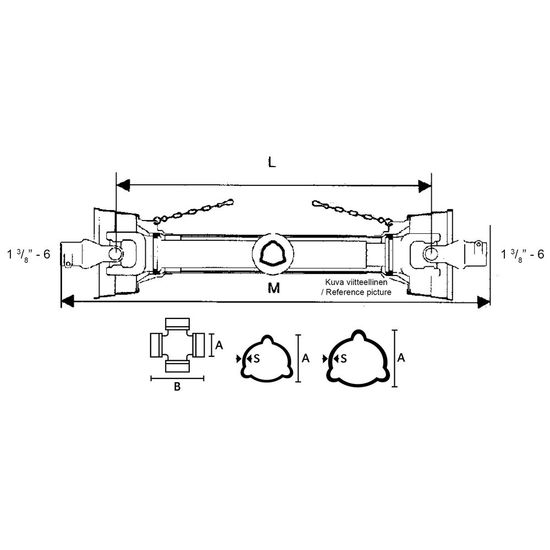

  - see image for dimensions
  - values established under continuous load, 5° angle, and 1000 hours of use

  Note! Must be lubricated before use.
