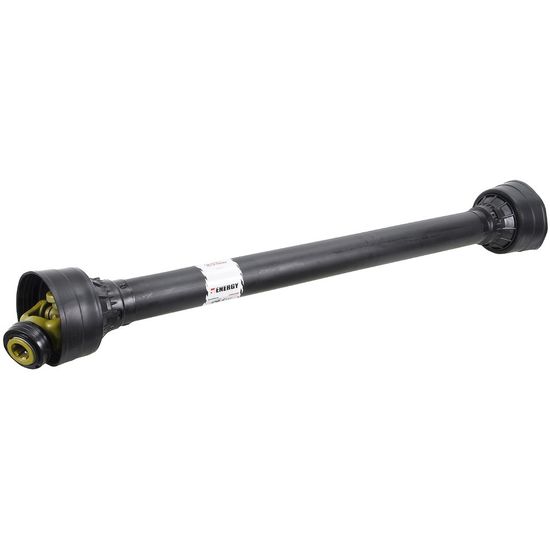

PTO Shaft B105 Long 1.3/8-6

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT824021

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: B05 (105)
  - splines: 6
  - power 540 rpm: 35 kW / 47 hp / 620 Nm
  - power 1000 rpm: 54 kW / 74 hp / 520 Nm
  - length: L 1210 mm, M min. 1434 mm, max. 1964 mm

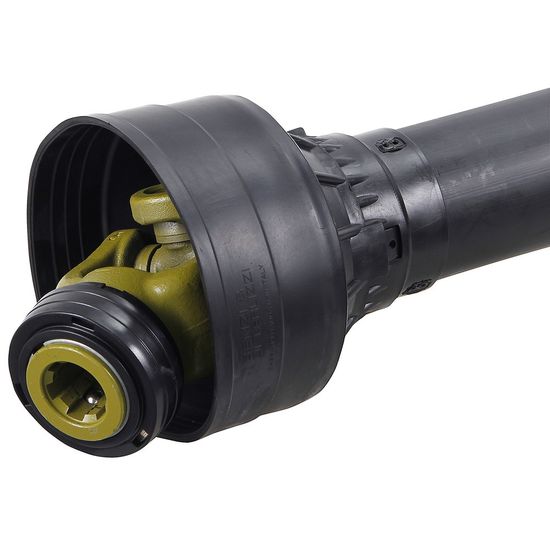

  - universal joint: A/B: 30.2 x 80 mm
  - inner tube: A 45 mm, S 4 mm
  - outer tube: A 51.6 mm, S 3 mm
  - max. static load 1050 Nm
  - applications: trailers, snow blowers
  - refer to image for dimensions
  - values determined with continuous load, 5° angle, and 1000 operating hours

  Note! must be lubricated before use.
