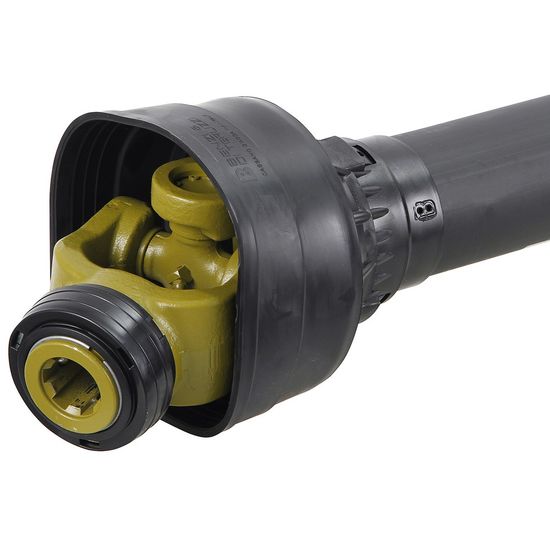

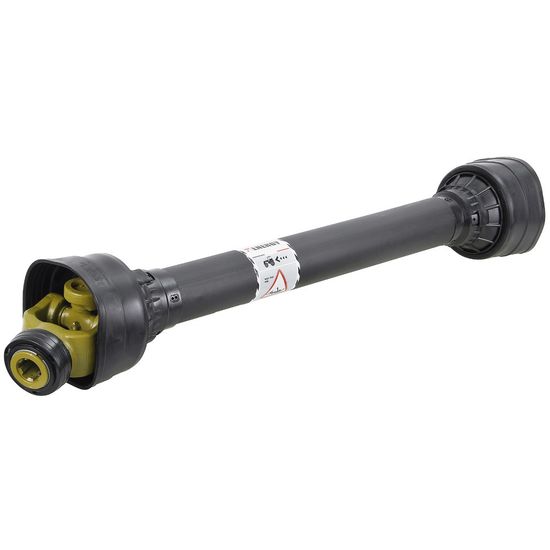

PTO Shaft B106 1.3/8-6 Shear Bolt 1.3/8-6

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT825486

  ManufacturerBENZI DI TERLIZZI

  Characteristicssplines: 6
  64-100 HP

  - type: B06 (106), bolt coupling
  - splines: 6
  - power 540 rpm: 47 kW / 64 hp / 830 Nm
  - power 1000 rpm: 74 kW / 100 hp / 710 Nm
  - length: L 860 mm, M min. 1090 mm, max. 1525 mm
  - universal joints: A/B: 30.2 x 92 mm
  - inner tube: A 45 mm, S 4 mm
  - outer tube: A 54 mm, S 4 mm
  - max. static load 1450 Nm
  - applications: trailers, snow blowers, sprinklers, grinders, circular saws, wood chippers, mowers, balers, milling cutters, peat machines

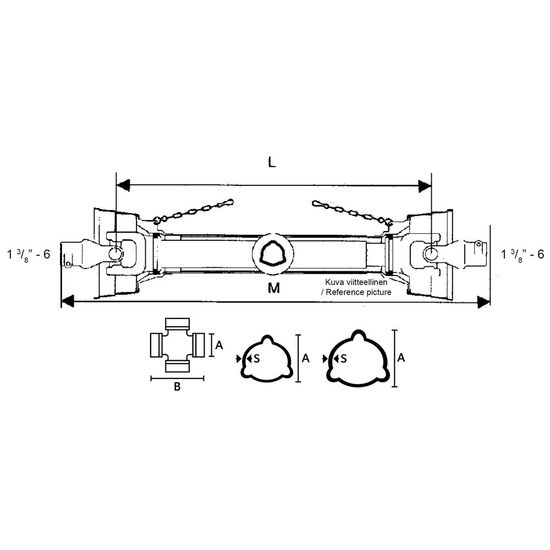

  - see image for measurements
  - values determined with continuous load, 5° angle, and 1000 operating hours

  Note! must be lubricated before use.
