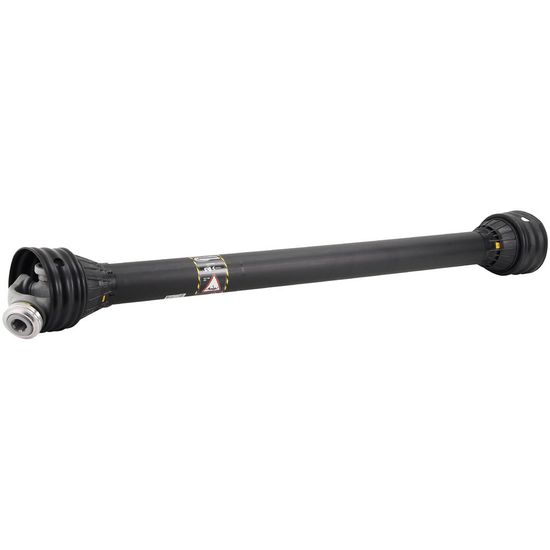

PTO Shaft B108 1510mm 1.3/8-6 Std 1.3/4-6 Evo

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT827051E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: V08 (B108)

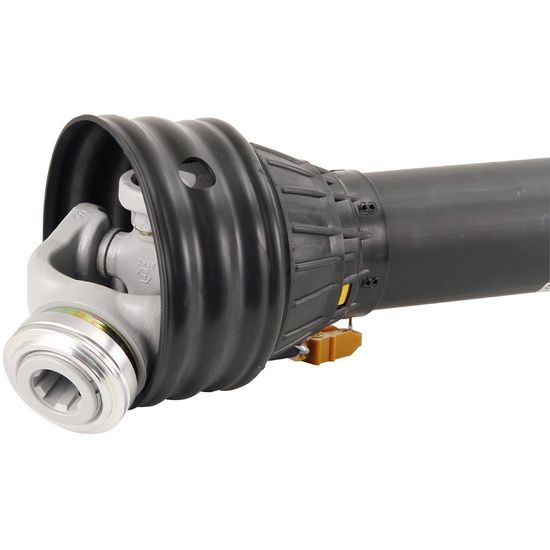

  - fork tractor side: 1 3/8"-6Z locking collar
  - fork implement side: 1 3/4"-6Z pin lock
  - power 540 rpm: 77 kW / 105 hp / 1365 Nm
  - power 1000 rpm: 119 kW / 162 hp / 1142 Nm
  - max. static load on tubes: 3000 Nm
  - length: L 1510 mm, M min. 1775 mm, M max. 2530 mm
  - universal joint: A/B: 35 x 106.5 mm
  - inner tube: star A 51 mm, B 37 mm
  - outer tube: star A 61 mm, B 47 mm, S 4.5 mm
  - service interval up to 50 hours
  - applications: trailers, snow blowers, grinders, wood chippers, peat machines etc.

  Note! must be lubricated before use.
