Connection Set For Rear Light Bayonet 5-Pin

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDST100653

  ManufacturerCRX

  Characteristics

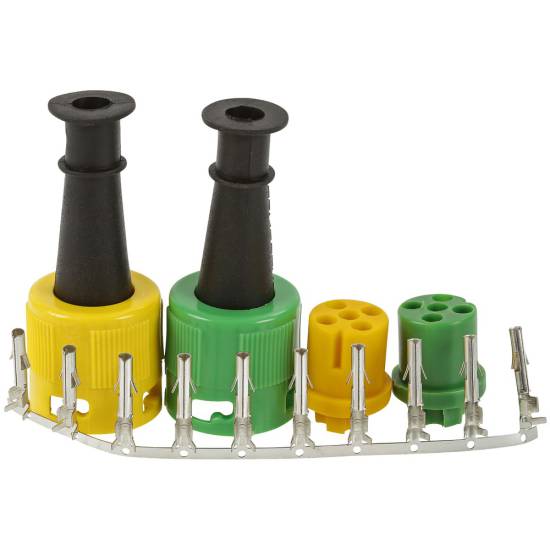

  - Bayonet set for trailer lights connection point
  - of (R) on the connection body of yellow (left) and green, and 10 units of connecting pins

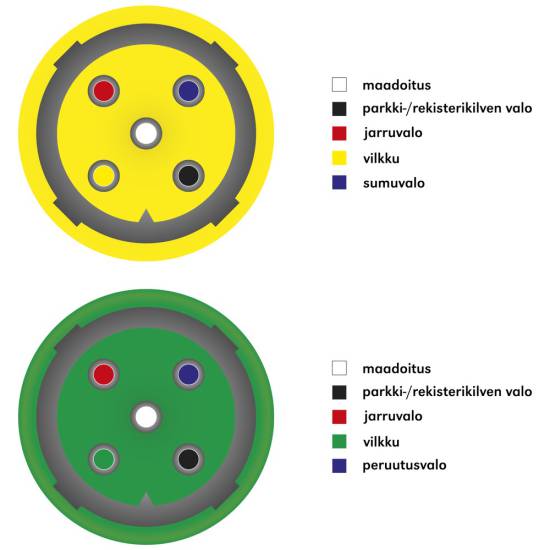

  - see connection attachment in the picture (the connectors shown from the back)


  connecting the yellow connector:
  - white: ground
  - B: parking lights
  - red: brake lights
  - yellow: turn signals
  - blue: fog lights


  Green Connection Point:
  - white: ground
  - black: parking / license plate lights
  - red: brake lights
  - green: turn signals
  - blue: reverse lights
