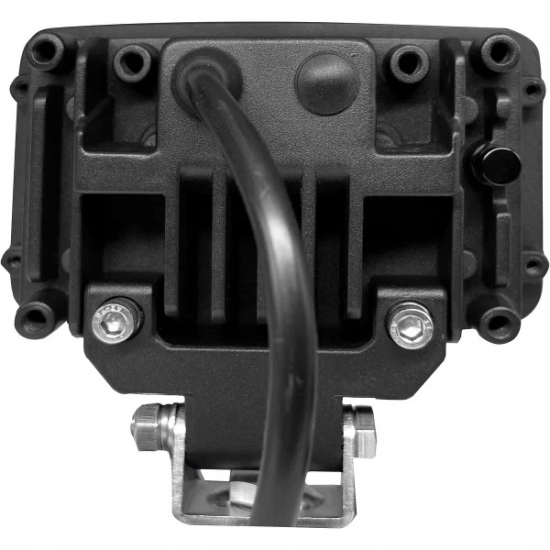

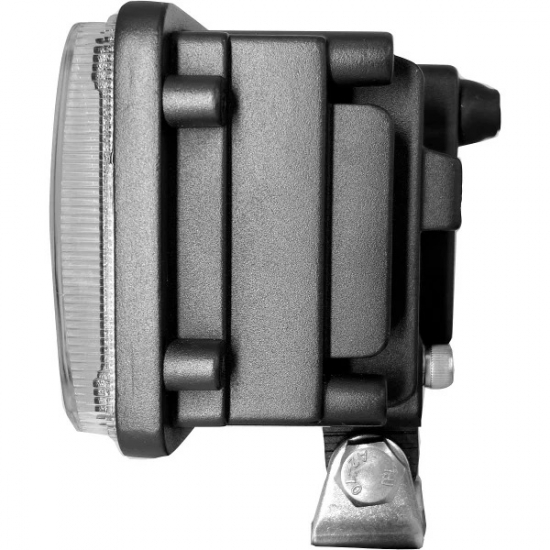

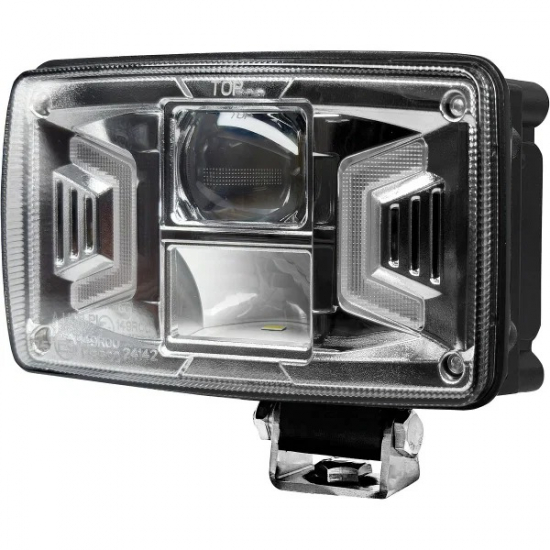

LED Headlight 155X92mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST86222B

  ManufacturerCRX

  Characteristics

  - E-approved LED headlight
  - Voltage 10–30 V DC
  - Low beam luminous flux theoretical 2000 lm / actual 1400 lm
  - Low beam rated power 25 W LED
  - Low beam current draw 12 V 1,66 A / 24 V 0,85 A
  - High beam luminous flux theoretical 4500 lm / actual 3000 lm
  - High beam rated power 50 W LED
  - High beam current draw 12 V 3,75 A / 24 V 1,88 A
  - Position light rated power 6 W LED
  - Colour temperature 6000 K
  - Reference number 17,5
  - Protection class IP69K
  - EMC CISPR 25 Klass 3 (Provides very good interference suppression)
  - Service life 30000 h
  - Impact-resistant aluminium housing
  - Polycarbonate lens
  - H4 connector and separate position light cable
  - Operating temperature -40…+90 °C
  - Reverse polarity protection
  - Bottom, top, side or rear mounting
  - Dimensions 155 x 92 x 83 mm

  Wiring:
  - Yellow/Green = Position light
  - Brown = Low beam
  - Blue = High beam
  - Black = Ground
