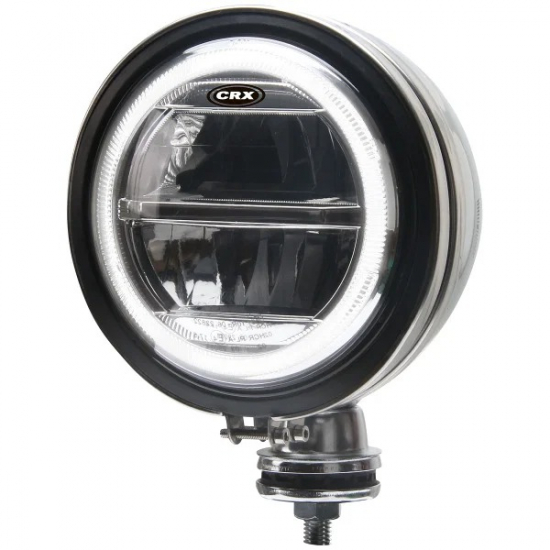

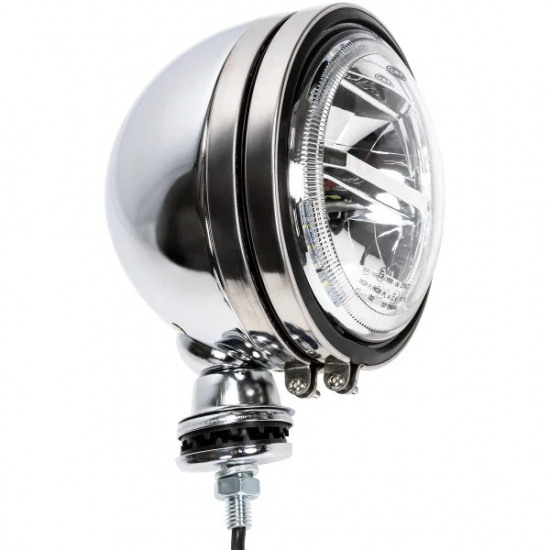

LED Headlight Round 165mm Chrome

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST86223

  ManufacturerCRX

  Characteristics

  - E-approved LED headlight with chrome-plated reflector
  - voltage 10 - 30 V DC
  - low beam luminous flux theoretical 1100 lm / actual 492 lm
  - low beam rated power 16 W LED
  - low beam current draw 12 V 1,33 A / 24 V 0,66 A
  - high beam luminous flux theoretical 2300 lm / actual 1460 lm
  - high beam rated power 21 W LED
  - high beam current draw 12 V 1,75 A / 24 V 0,88 A
  - position light rated power 1,0 W LED
  - colour temperature 5700 k
  - reference number 17,5
  - protection class IP66/IP69K
  - EMC CISPR 25 class 3 (provides very good interference suppression)
  - chrome-plated metal housing
  - polycarbonate lens
  - 100 cm kabel
  - M12-mounting bolt, the power cable runs through the bolt
  - the freely rotating housing allows the headlight to be side-mounted
  - operating temperature -40...+50 °C
  - temperature control
  - low-voltage protection
  - reverse polarity protection
  - bottom, top or side mounting
  - dimensions 165 x 236 x 148 mm
  - weight 1,24 kg

  Wiring:
  - black: ground
  - red: high beam
  - yellow: position light
  - blue: low beam
