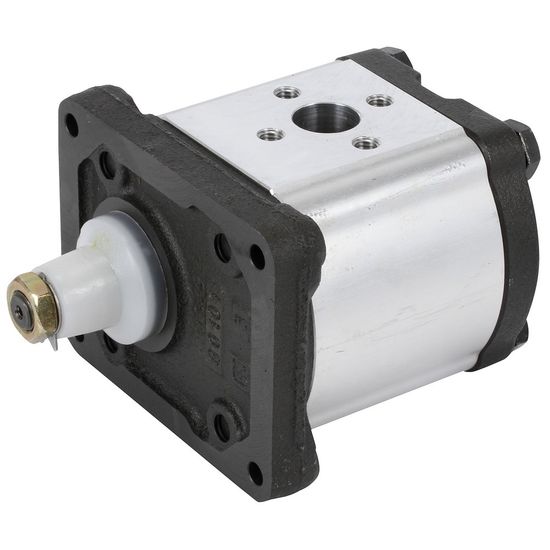

Hydraulic Pump A42 Fiat 5129488

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT3448

  ManufacturerTK&K

  Characteristics

  - larger model
  - displacement capacity cm3/r: 19 (1 cm3/r = 0.001 l)
  - max. pressure constant: 210 bar (P1)
  - max. pressure temporary: 220 bar (P2)
  - max. pressure peak: 250 bar (P3)
  - max. constant r/min: 2000 (P1)
  - max. temporary r/min: 2800 (P2)

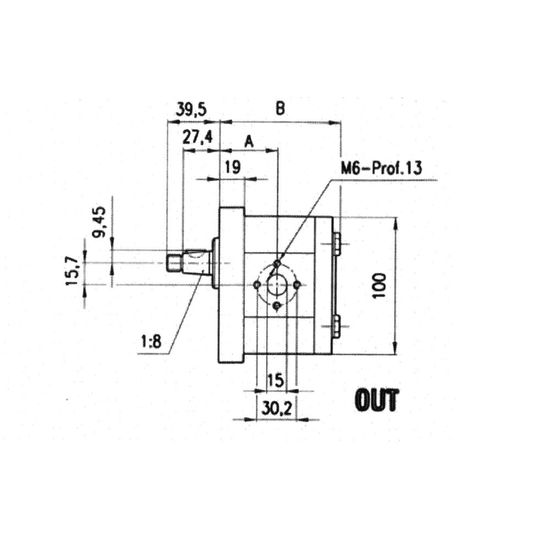

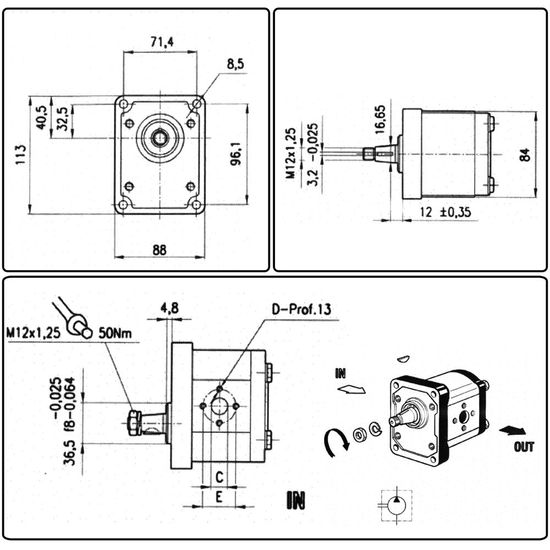

  - A: 49 mm
  - B: 111 mm
  - C: 20 mm
  - D: M8
  - E: 39.7 mm
  - weight 3.6 kg

  More information on compatibility:
  - single pump for front engine
  - DB tractor model 1690 also turbo
• Suitable for models
• Case 1594
  Case 1694
  David Brown Case 1690
  Fiat 1380
  Fiat 1580
  Fiat 1880
  Fiat New Holland 100-90
  Fiat New Holland 110-90
  Fiatagri 115-90
  Fiatagri 130-90
  Fiatagri 140-90
  Fiatagri 160-90
  Fiatagri 180-90
  Fiatagri 55-90
  Fiatagri 60-90
  Fiatagri 70-90
  Fiatagri 80-90
  Fiatagri 90-90

• Product groups
• David Brown - Case
  Fiat - Fiatagri
  Hydraulic Pumps

• OEM part no.
• FI 5129488
  DB K949605
