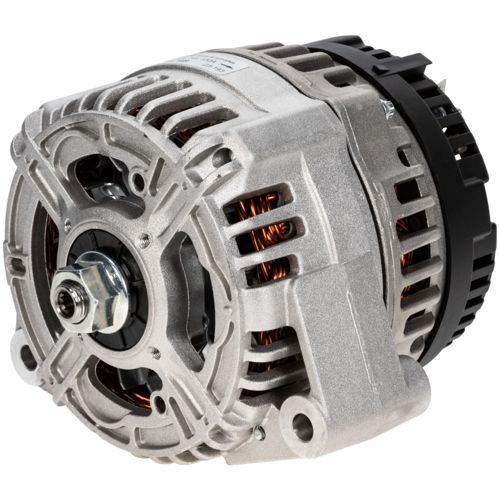

Alternator Mahle 150A 12V Fendt

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSTL0030M

  ManufacturerMahle

  Characteristics

  - 150 A
  - 12 V
  - delivered without pulley
  - shaft 17 mm

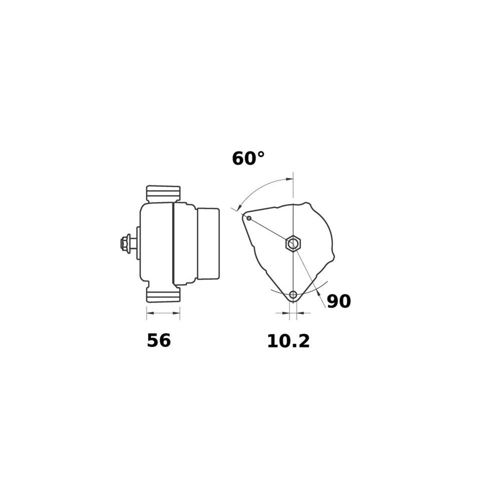

  - mounting hole Ø 10.2 mm
  - distance between mounting holes 56 mm

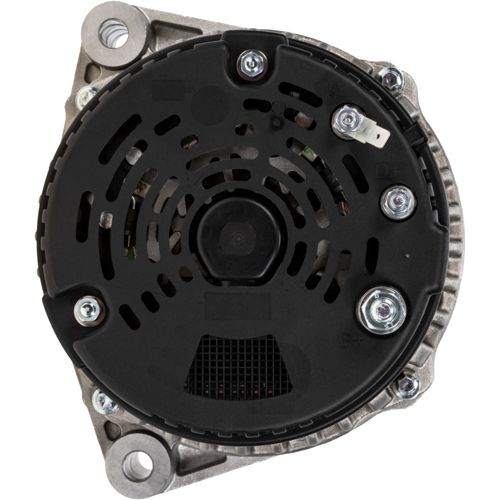

  - W connector

  General descriptions of the generator's terminals:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator ground to battery's - terminal/chassis
  - IND, I, D+ = activation of generator via charging lamp
  - W = pulse terminal for electronic tachometer
  - S = sensor for battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• Fendt 308
  Fendt 308 LS
  Fendt 308 LSA
  Fendt 308 S
  Fendt 309
  Fendt 309 LS
  Fendt 309 LSA
  Fendt 309L
  Fendt 310
  Fendt 310 LS
  Fendt 310 LSA
  Fendt 311
  Fendt 311 LS
  Fendt 311 LSA
  Fendt 312
  Fendt 312 LS
  Fendt 312 LSA
  Fendt 816
  Fendt 818
  Fendt 822
  Fendt 824
  Fendt 916
  Fendt 920
  Fendt 924NA
  Fendt 926
  Fendt 926NA
  Fendt Favorit 924
