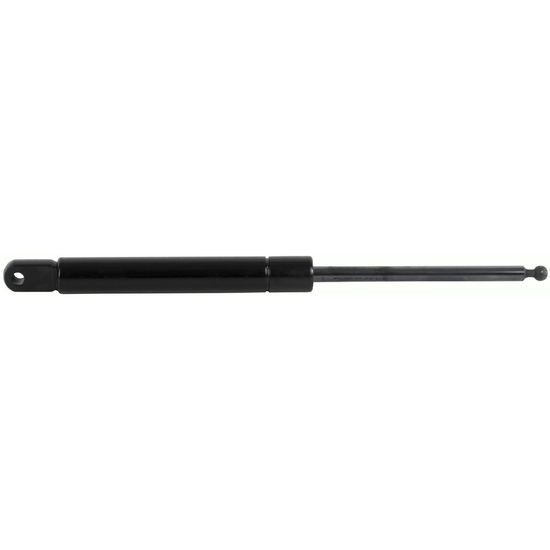

Gas strut 261X280N Roof hatch Fiat

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDKS0114V

  ManufacturerAGRILIFE

  CharacteristicsStroke length: 104 mm

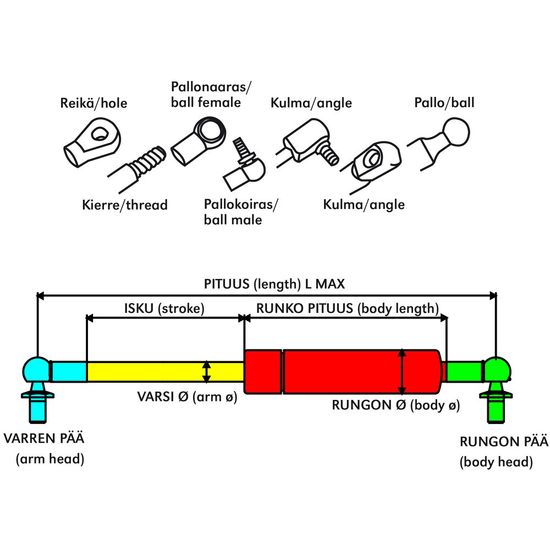

  Technical specification:
  - length L max: 261
  - cylinder length: 126
  - stroke length mm: 104
  - cylinder end: hole 6.2 mm
  - cylinder diameter: 18
  - rod end: ball 7.9 mm
  - rod diameter: 8
  - force: 280 N
  - Fiat tractor models 580, 680, 780, 880, 980, 1180, 1380, 1580, 1880 with Pininfarina cab
  - Fiat tractor models 55-90, 60-90, 65-90, 70-90, 80-90 with narrow cab
  - Fiat tractor models 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90 with CL cab
  - mounted vertically e.g. in rear window
  - with end damping
  - mount rod downwards
• Suitable for models
• Fiat 1180
  Fiat 1380
  Fiat 1580
  Fiat 1880
  Fiat 580
  Fiat 680
  Fiat 780
  Fiat 880
  Fiat 980
  Fiat New Holland 100-90
  Fiat New Holland 110-90
  Fiatagri 115-90
  Fiatagri 130-90
  Fiatagri 140-90
  Fiatagri 160-90
  Fiatagri 180-90
  Fiatagri 55-90
  Fiatagri 60-90
  Fiatagri 65-90
  Fiatagri 70-90
  Fiatagri 80-90
  Fiatagri 85-90
  Fiatagri 90-90
