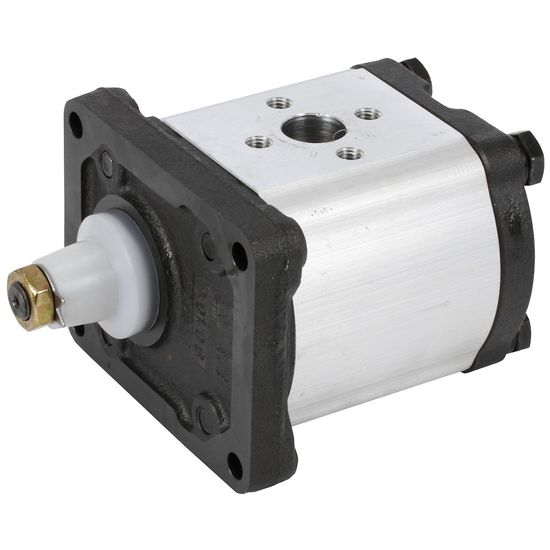

Hydraulic Pump A52

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT3448XL

  ManufacturerTK&K

  Characteristics

  - larger model
  - displacement capacity cm3/r: 22.5 (1 cm3/r = 0.001 l)
  - max. pressure constant: 180 bar (P1)
  - max. pressure temporary: 190 bar (P2)
  - max. pressure peak: 210 bar (P3)
  - max. constant r/min: 2000 (P1)
  - max. temporary r/min: 2400 (P2)

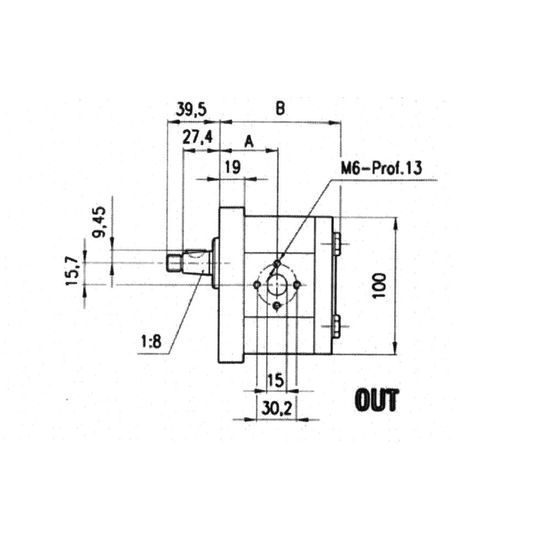

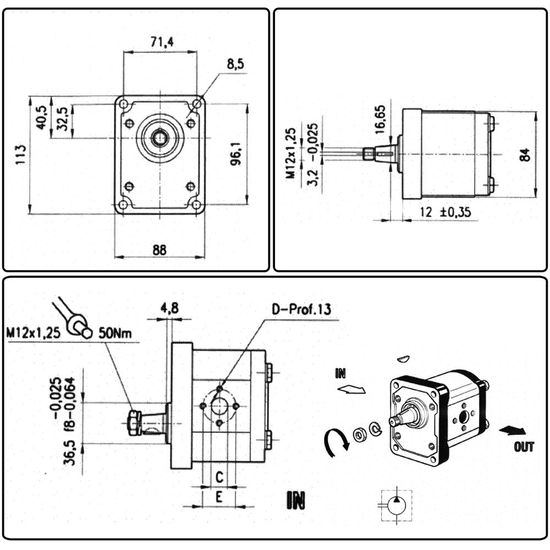

  - A: 56.5 mm
  - B: 117 mm
  - C: 20 mm
  - D: M8
  - E: 39.7 mm
  - weight 3.8 kg
• Suitable for models
• Fiat New Holland 100-90
  Fiat New Holland 110-90
  Fiatagri 115-90
  Fiatagri 130-90
  Fiatagri 140-90
  Fiatagri 160-90
  Fiatagri 180-90
  Fiatagri 90-90

• Product groups
• Fiat - Fiatagri
  Hydraulic Pumps

• OEM part no.
• FI 2TK22S
