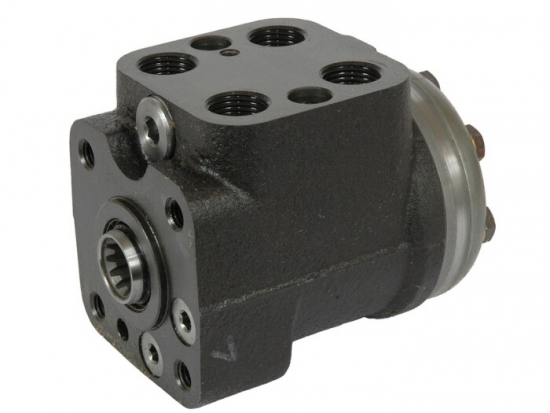

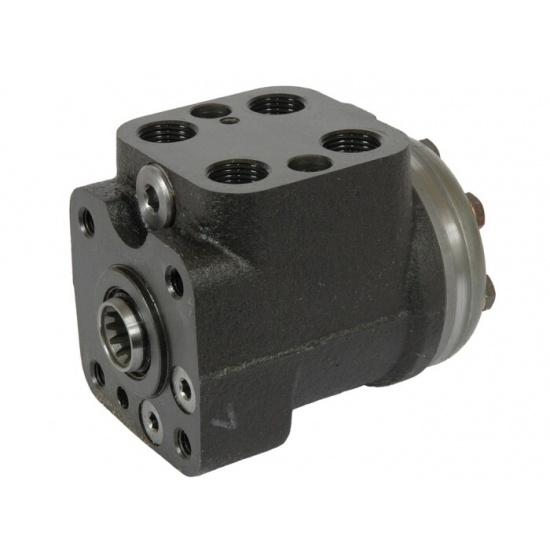

Orbital steering unit G-OSPC-160-ON

• Info
• Stock status

  Product ID87000852

  Manufacturer

  Characteristics

  More information

  Volume (cm³/v):160

  P max (bar):175

  T max. (bar):25

  L1 (mm):145

  Connection A (BSP):1/2"

  Weight:6.11 kg
  OSPC160ON

  G-OSPC units also have integrated valve functions: • Pressure relief valve, set at 140 bar • Shock valve in L + R, set at 200 bar • Suction valve in L + R • Back valve in P. O stands for "Open Center" Open Center "means that this unit is designed for open systems. In neutral, there is an open connection between the pump and the tank. N" stands for non-reaction" so external forces acting on the wheels do not trigger any steering wheel movement when the control unit is in neutral position.
• Suitable for models
• Fiatagri 80-90

• Product groups
• Fiat - Fiatagri

• OEM part no.
• OSPC160ON
