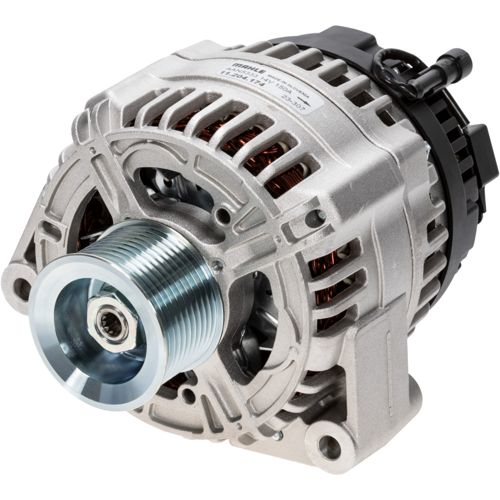

Alternator Mahle 150A 12V Nh

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0242M

  ManufacturerMahle

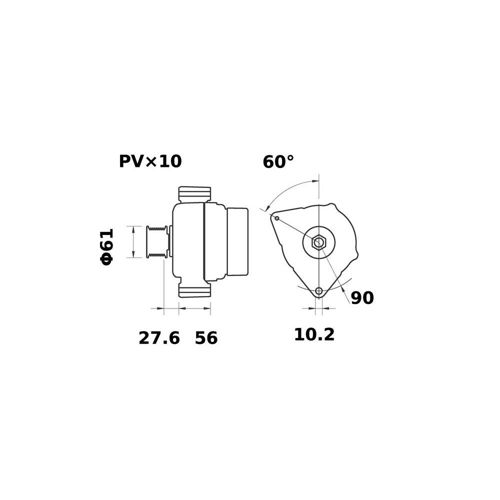

  Characteristics

  - 150 A
  - 14 V
  - pulley with 10 grooves Ø 61 mm
  - shaft 17 mm
  - mounting hole Ø 10.2 mm
  - distance between mounting holes 56 mm

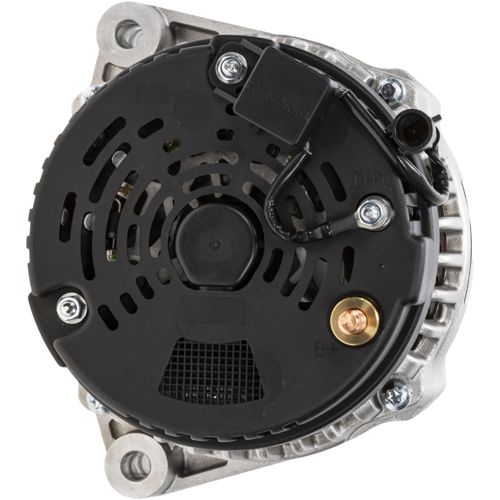

  General descriptions of the generator pins:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator grounding to the battery's - terminal/chassis
  - IND, I, D+ = activation of generator via charge lamp
  - W = impulse pin for electric tachometer
  - S = sensor for battery temperature sensor (Ford)
  - AUX = extra connection for additional equipment
  - F = field in DC generators
• Suitable for models
• Case IH Puma 170
  Case IH Puma 180
  Case IH Puma 180 CVX
  Case IH Puma 185
  Case IH Puma 185 CVX
  Case IH Puma 195
  Case IH Puma 195 CVX
  Case IH Puma 200
  Case IH Puma 200 CVX
  Case IH Puma 210
  Case IH Puma 210 CVX
  Case IH Puma 215
  Case IH Puma 220
  Case IH Puma 220 CVX
  New Holland T7.195S
  New Holland T7.215S
  New Holland T7.220
  New Holland T7.230
  New Holland T7.235
  New Holland T7.245
  New Holland T7.250
  New Holland T7.260
  New Holland T7.270
  New Holland T7030
  New Holland T7040
  New Holland T7040 PC
  New Holland T7050
  New Holland T7060
