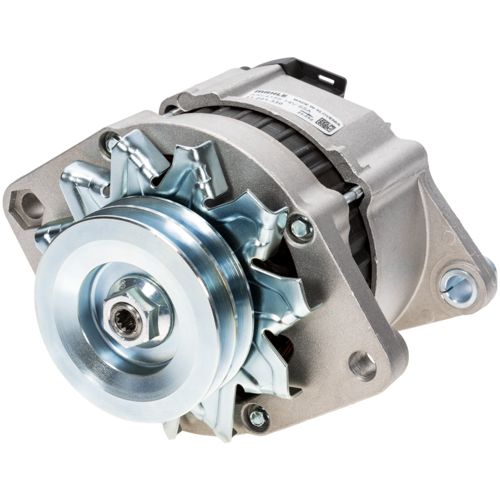

Alternator Mahle 65A 12V Fiat

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST0200M

  ManufacturerMahle

  Characteristics

  - 65 A
  - 14 V

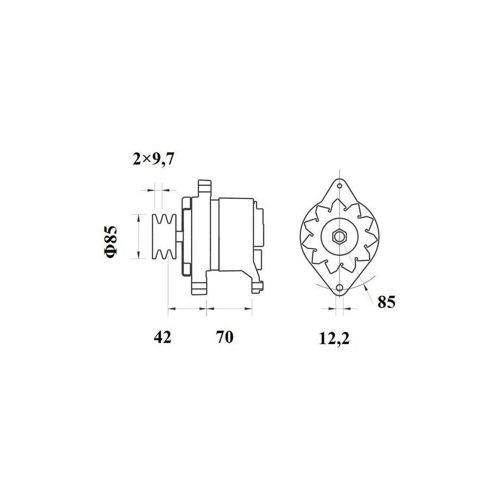

  - double pulley, with 2 grooves Ø 85 mm
  - shaft 17 mm
  - mounting hole Ø 12.2 mm
  - distance between mounting holes 70 mm

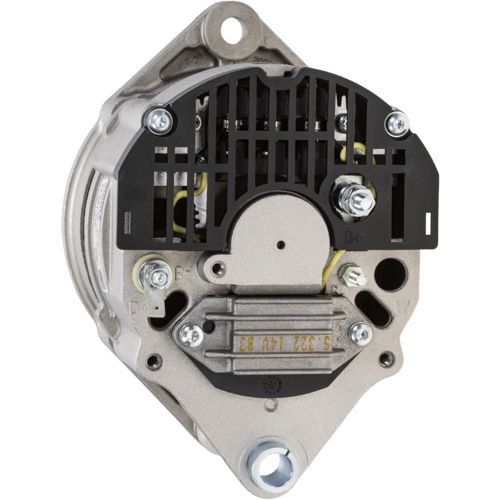

  General descriptions of the generator's terminals:
  - B+,+ = charging current to the battery's + terminal
  - D-, B- = generator's grounding to the battery's - terminal/chassis
  - IND, I, D+ = activating the generator via charging lamp
  - W = impulse terminal for electric tachometer
  - S = sensor for the battery's temperature sensor (Ford)
  - AUX = additional connection for extra equipment
  - F = field in DC generators
• Suitable for models
• Case IH JX70U
  Case IH JX80
  Case IH JX80U
  Case IH JX85
  Case IH JX90
  Case IH JX90U
  Case IH JX95
  Fiat 1380
  Fiat 1580
  Fiat 1880
  Fiat New Holland 100-90
  Fiat New Holland 110-90
  Fiatagri 115-90
  Fiatagri 130-90
  Fiatagri 140-90
  Fiatagri 160-90
  Fiatagri 180-90
  Fiatagri 55-90
  Fiatagri 60-90
  Fiatagri 65-90
  Fiatagri 70-90
  Fiatagri 80-90
  Fiatagri 82-94
  Fiatagri 85-90
  Fiatagri 88-94
  Fiatagri 90-90
  Fiatagri F100
  Fiatagri F110
  Fiatagri F115
  Fiatagri F120
  Fiatagri F130
  Fiatagri F140
  New Holland 4635
  New Holland 4835
  New Holland 5635
  New Holland 6635
  New Holland 7635
  New Holland L60
  New Holland L65
  New Holland L85
  New Holland L95
  New Holland TL100
  New Holland TL70
  New Holland TL80
  New Holland TL90
