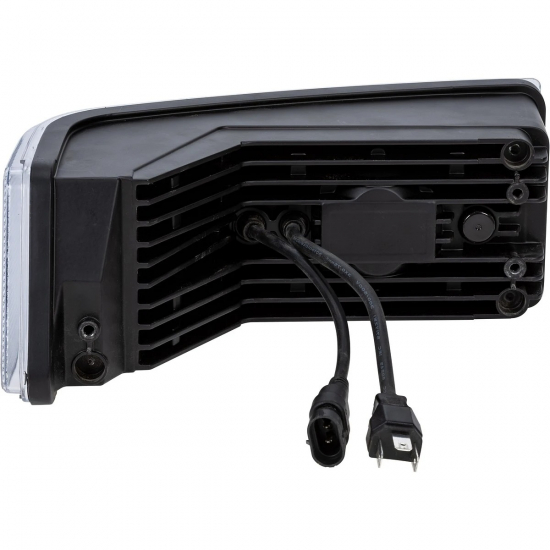

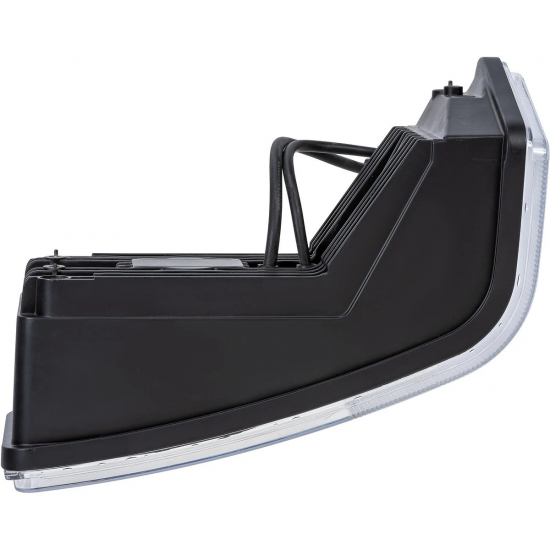

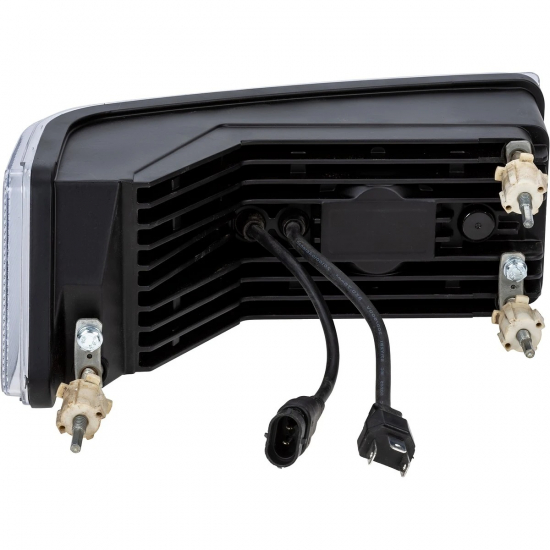

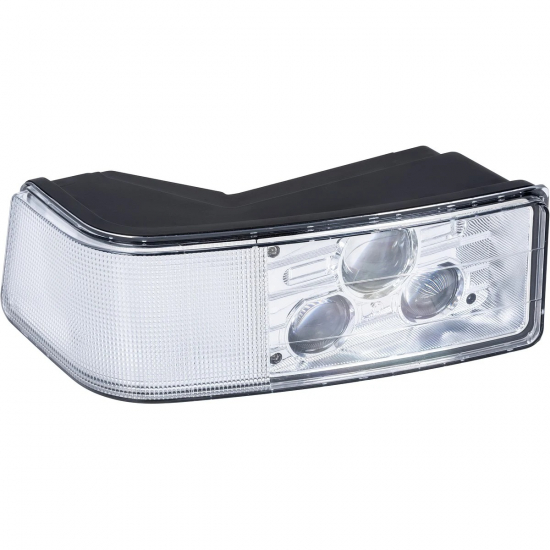

Led-Driving Light Case Right - 232448A2

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDST87028R

  ManufacturerCRX

  Characteristics

  E-approved LED headlight with work light
  - voltage 9 - 32 V DC
  - low beam luminous flux theoretical 2400 lm / practical 1600 lm
  - low beam nominal power 30 W LED
  - low beam power consumption 12 V 1.67 A / 24 V 0.83 A
  - high beam luminous flux theoretical 4400 lm / practical 3900 lm
  - high beam nominal power 55 W LED
  - high beam power consumption 12 V 4.58 A / 24 V 2.29 A
  - work light luminous flux theoretical 3200 lm / practical 2700 lm
  - work light nominal power 40 W LED
  - work light power consumption 12 V 2.67 A / 24 V 1.33 A
  - color temperature 5500 K
  - protection class IP69K
  - EMC CISPR 25 class 3 (provides very good interference protection)
  - housing in impact-resistant aluminum
  - polycarbonate lens
  - H4 connector and separate PG13 connection for work light
  - operating temperature -40...+80 °C
  - dimensions 272 x 108 x 110 mm
  - weight 1850 g
• Suitable for models
• Case IH CVX120
  Case IH CVX130
  Case IH CVX150
  Case IH CVX170
  Case IH CX70
  Case IH CX80
  Case IH CX90
  Case IH JX100U
  Case IH JX107OU
  Case IH JX108OU
  Case IH JX1090U
  Case IH JX70U
  Case IH JX80U
  Case IH JX90U
  Case IH MX100C
  Case IH MX180
  Case IH MX200
  Case IH MX220
  Case IH MX230
  Case IH MX240
  Case IH MX255
  Case IH MX270
  Case IH MX285
  Case IH MX80C
  Case IH MX90C
  Case IH MXM120
  Case IH MXM130
  Case IH MXM140
  Case IH MXM155
  Case IH MXM175
  Case IH MXM190
  Case IH MXU100
  Case IH MXU110
  Case IH MXU115
  Case IH MXU125
  Case IH MXU135
  Case IH Quantum 85C
  Case IH Quantum 95C

• Product groups
• International-Case IH
  LED Headlights

• OEM part no.
• CIH 47109150
  CIH 232449A2
  CIH 44995026
  CIH 308342A1
  CIH 232449A1
