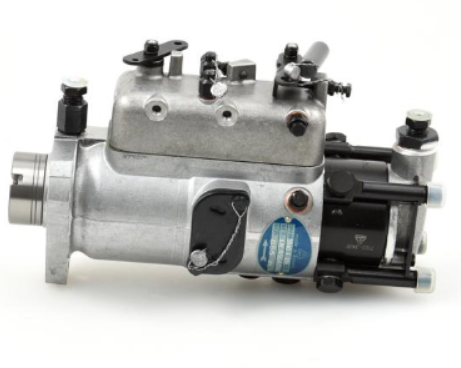

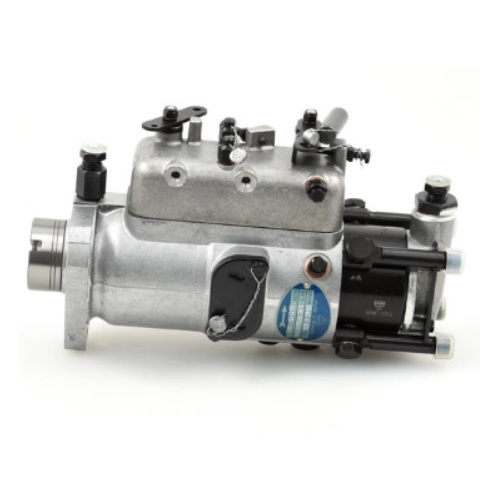

Fuel injection pump MF AD4.203

• Info
• Stock status

  Product ID899071M91

  Manufacturer

  CharacteristicsFits models: MF 155, 158, 165, 560, 65, 765

  High-quality fuel pump / diesel pump for Massey Ferguson tractors (See tab "fits models")
  The fuel pump is made of durable material for long-lasting use.

  For models with AD4.203 engine.

  Technical Specification:
  - Engine Manufacturer: Perkins
  - Model: Perkins AD4.203
  - Fuel lubrication: Test – Calibration Oil ISO4113. Operation – Diesel
  - Hydraulic timing device: Yes
  - Max. injection pressure: 500 bar
  - Max. plunger stroke: 1.5 mm
  - Max. power per cylinder: 20 kW
  - Max. pump speed: 2500 rpm
  - Mechanical governor: Yes
  - Number of plungers: 2
  - Number of outlets: 4
  - Plunger diameter: 8.5 mm
  - Pressure: 0.1 bar
  - Pump rotation: Anti-clockwise
  - Temperature range: -20 °C to +72 °C

• Suitable for models
• Massey Ferguson 155
  Massey Ferguson 158
  Massey Ferguson 165
  Massey Ferguson 260
  Massey Ferguson 65
  Massey Ferguson 765

• Product groups
• Massey Ferguson

• OEM part no.
• 3240F938
  CAV3240F938
  3840F938
  883517M91
  899071M91
  1447156M91
