Power steering kit MF 165,168,175,178,185,188

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDMF1478

  Manufacturer

  CharacteristicsPower steering kit.

  Ensure that driving and working can be done without much effort with the help of this power steering kit. The servo makes it require less force to turn the steering wheel.

  Power steering kit.

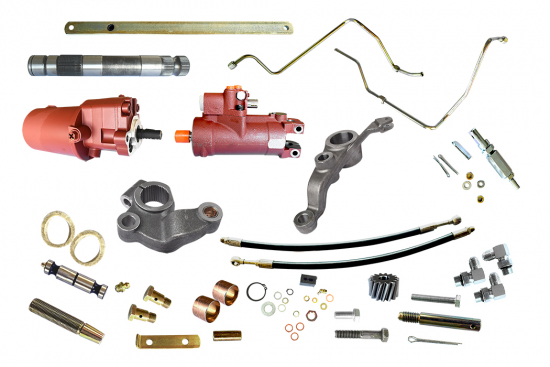

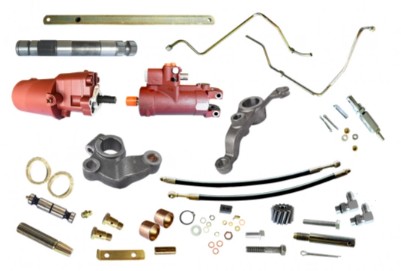

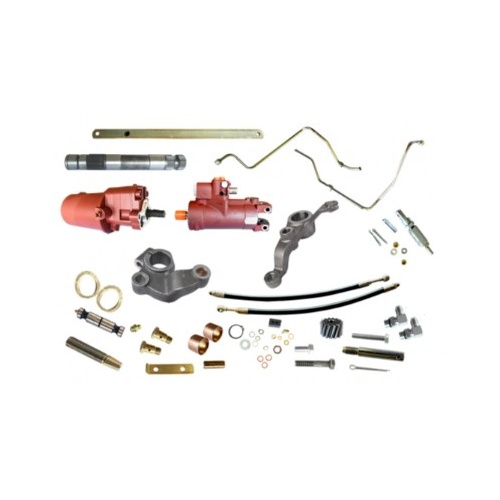

  The kit includes:
  - 1 turning tension pin / unit
  - 1 pack of 2 pins
  - 1 gear
  - 1 power steering lever
  - 1 snap ring
  - 1 axle ring
  - 2 angle couplings
  - 4 copper washers
  - 1 gasket for power steering pump
  - 2 fiber seals
  - 1 hydraulic nipple 1/8" 45° BSP
  - 1 power steering arm
  - 1 power steering unit
  - 1 power steering console
  - 1 power steering pump
  - 1 hydraulic nipple 5/16" UNF straight
  - 2 spring washers 3/8"
  - 2 bolts 3/8"x2 UNC
  - 2 power steering washers
  - 1 axle pin frame for console
  - 1 power steering cylinder
  - 1 nut 3/4" UNF
  - 1 pipe holder
  - 2 banjo bolts
  - 1 tube for top
  - 1 tube for bottom
  - 2 hoses
  - 2 sealing washers
  - 2 bushings
  - 1 split pin
  - 2 spring washers 5/16"
  - 1 bolt 5/16x3/4" UNF
  - 1 bolt 5/16x2" UNF
  - 1 sealing washer 5/16"
  - 1 belt
  - 1 bracket
  - 1 bushing
  - 1 clip


  Technical specification:
  Approximate dimensions: 370 X 355 X 725 mm
  Weight: 29.2 kg
• Suitable for models
• Massey Ferguson 165
  Massey Ferguson 168
  Massey Ferguson 175
  Massey Ferguson 178
  Massey Ferguson 185
  Massey Ferguson 188

• Engine/Model Year
• Massey Ferguson 165 A4.212
• Product groups
• Massey Ferguson

• OEM part no.
• 1866890R98
  887183M91
  1829457M91
  1866890M98
