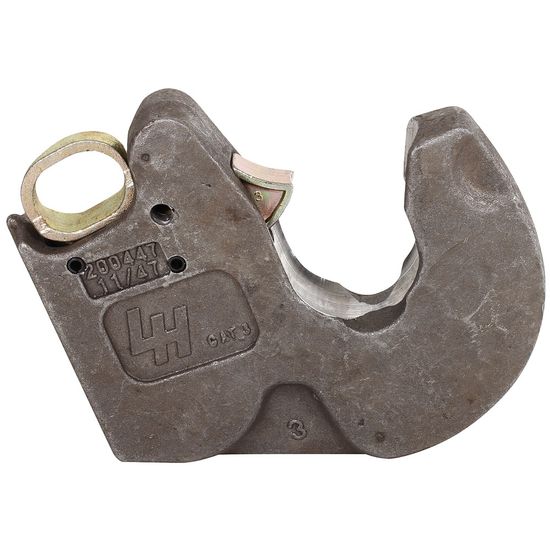

Draught arm Quick coupling Cat 3

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT565102

  Manufacturer

  CharacteristicsFor 64mm ball

  - weldable quick hitch hook for drawbar
  - CAT 3 (37.5 mm)
  - recommended for tractors over 100 hp
  - unique patented locking mechanism makes connecting LH Lift quick hitch hook to the machinery easy and secure
  - the machine's movements and sideway tilts do not open the lock, the lock is opened by lightly pulling the drawbar
  - opening mechanism and drawbar inside the hook protect them from dirt and breakage

  When welding, please note:
  - the drawbar's plate has sufficient chamfers
  - there is enough air gap between the plate and the hook
  - welding current is sufficient (so that the base materials melt)
  - there are enough welding rods to fill the groove
  - welding can be done e.g. with MIG/MAG welding, 1.0 mm welding wire and Mison 8 shielding gas

  Spare parts / Accessories:
  - drawbar ball T0621
  - repair kit LH5160700
• Suitable for models
• Valmet / Valtra N101
  Valmet / Valtra N111
  Valmet / Valtra N111e
  Valmet / Valtra N121
  Valmet / Valtra N122
  Valmet / Valtra N141
  Valmet / Valtra N142
  Valmet / Valtra N91
  Valmet / Valtra N92
  Valmet / Valtra T120
  Valmet / Valtra T121C
  Valmet / Valtra T130
  Valmet / Valtra T131C
  Valmet / Valtra T131H
  Valmet / Valtra T132
  Valmet / Valtra T140E
  Valmet / Valtra T140ECH
  Valmet / Valtra T150
  Valmet / Valtra T150CH
  Valmet / Valtra T151EH
  Valmet / Valtra T151ELS
  Valmet / Valtra T152
  Valmet / Valtra T160
  Valmet / Valtra T160CH
  Valmet / Valtra T161H
  Valmet / Valtra T161LS
  Valmet / Valtra T162
  Valmet / Valtra T170
  Valmet / Valtra T171H
  Valmet / Valtra T171LS
  Valmet / Valtra T172
  Valmet / Valtra T180
  Valmet / Valtra T182
  Valmet / Valtra T190
  Valmet / Valtra T191H
  Valmet / Valtra T191LS
