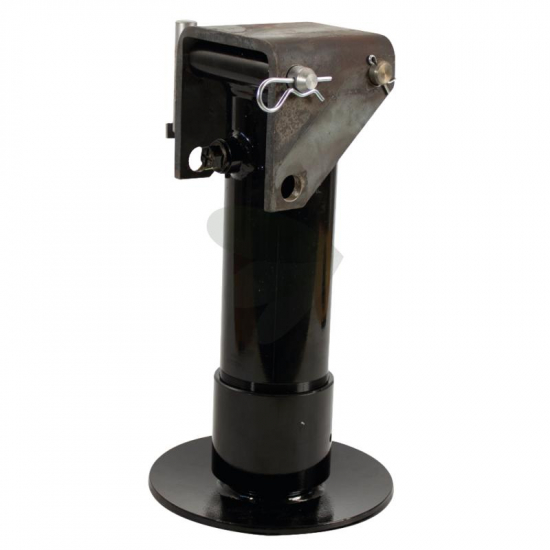

Hydraulic Trailer Support Leg 10300kg, Adjustment 250mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220890015

  Manufacturer

  CharacteristicsSingle-acting, with return spring

  G (mm): 230
  Connection: 1/2" internal thread
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Flange plate
  Max. oil pressure (bar): 200
  Max. static load capacity (kg): 100 bar = 5700
  150 bar = 8600
  180 bar = 10300
  Menke-No.: 67486
  Spindle lift (+/- 10): 250
  Equipment: - With hinge
  - Single-acting
  - With internal return spring
  Surface: RAL 9005
  Outer tube Ø (mm): 100, round
  Outer Ø (mm): Ø 100
