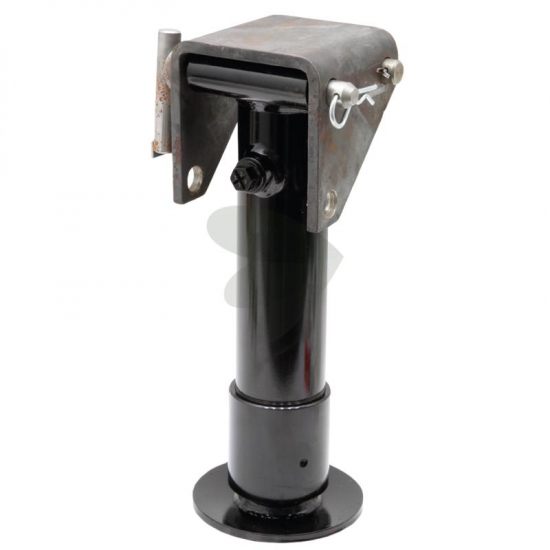

Hydraulic Trailer Support Leg 6000kg, Adjustment 250mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220890014

  Manufacturer

  CharacteristicsSingle-acting, with return spring

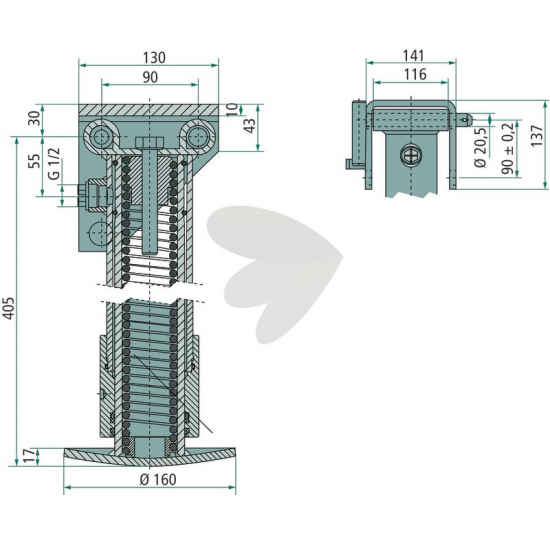

  D (mm): 435
  G (mm): 160
  I (mm): 65
  Connection: 1/2" internal thread
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Flange plate
  Max. oil pressure (bar): 200
  Max. static load capacity (kg): 100 bar = 3320
  150 bar = 4980
  180 bar = 6000
  Spindle lift (+/- 10): 250
  Equipment: - With hinge
  - Single-acting
  - With internal return spring
  Surface: RAL 9005
  Outer tube Ø (mm): 80, round
  Outer Ø (mm): Ø 80
