Trailer Support Leg 1000kg, Adjustment 310mm

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID220PE595

  ManufacturerSIMOL

  CharacteristicsWith horizontal crank and adjustable mounting part

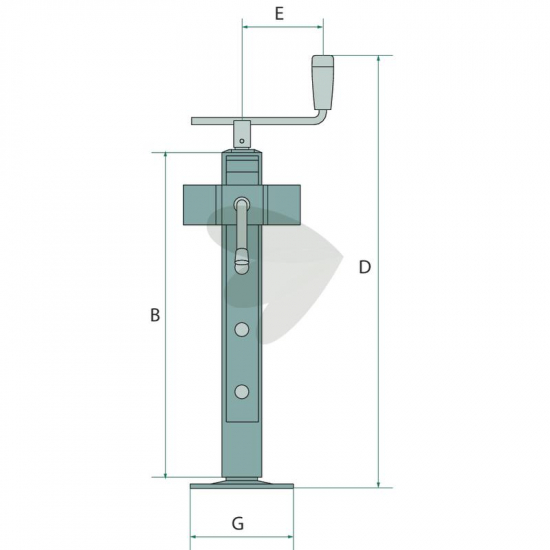

  B (mm): 500
  D (mm): 670
  E (mm): 185
  G (mm): 160
  H (mm): 288
  Application: Agricultural machines and trailers
  Construction machinery
  Snow clearing machines
  Mounting: Flange plate
  Crank: Horizontal
  Max. static load capacity (kg): 1000
  Spindle lift (+/- 10): 310
  Type: PE 595
  Design: Primed, with 4-hole screw plate
  Equipment: With adjustable mounting part, with holes
  Ergonomic handle, patented system
  Surface: Primed
  Outer Ø (mm): ? 70
